Abicor Binzel TCS-Compact - Setting up the Compressed Air-Motor

EN - 22
6 Putting into operation TCS-Compact
1 Position the torch with the gas nozzle (2) concentrically to the tool axis (milling cutter axis) over the
cleaning station (3).
2 Approach the clamping position. Make sure that the cylindrical part of the gas nozzle (2) lies evenly
against the clamping prism (1).
6.3 Setting up the compressed air-motor
NOTE
• The clamping position in the direction of the milling cutter axis should be in the cylindrical part of the
gas nozzle.
Please observe that the clamping position (5) can vary depending on the gas nozzle type.
1 Cleaning station
2 Welding torch
3 Gas nozzle clamping device
4 Gas nozzle
5 Milling cutter
6 Clamping screws M6x45
7 Allen key SW6
8 Compressed air-motor
(stroke down)
9 Motor fastener

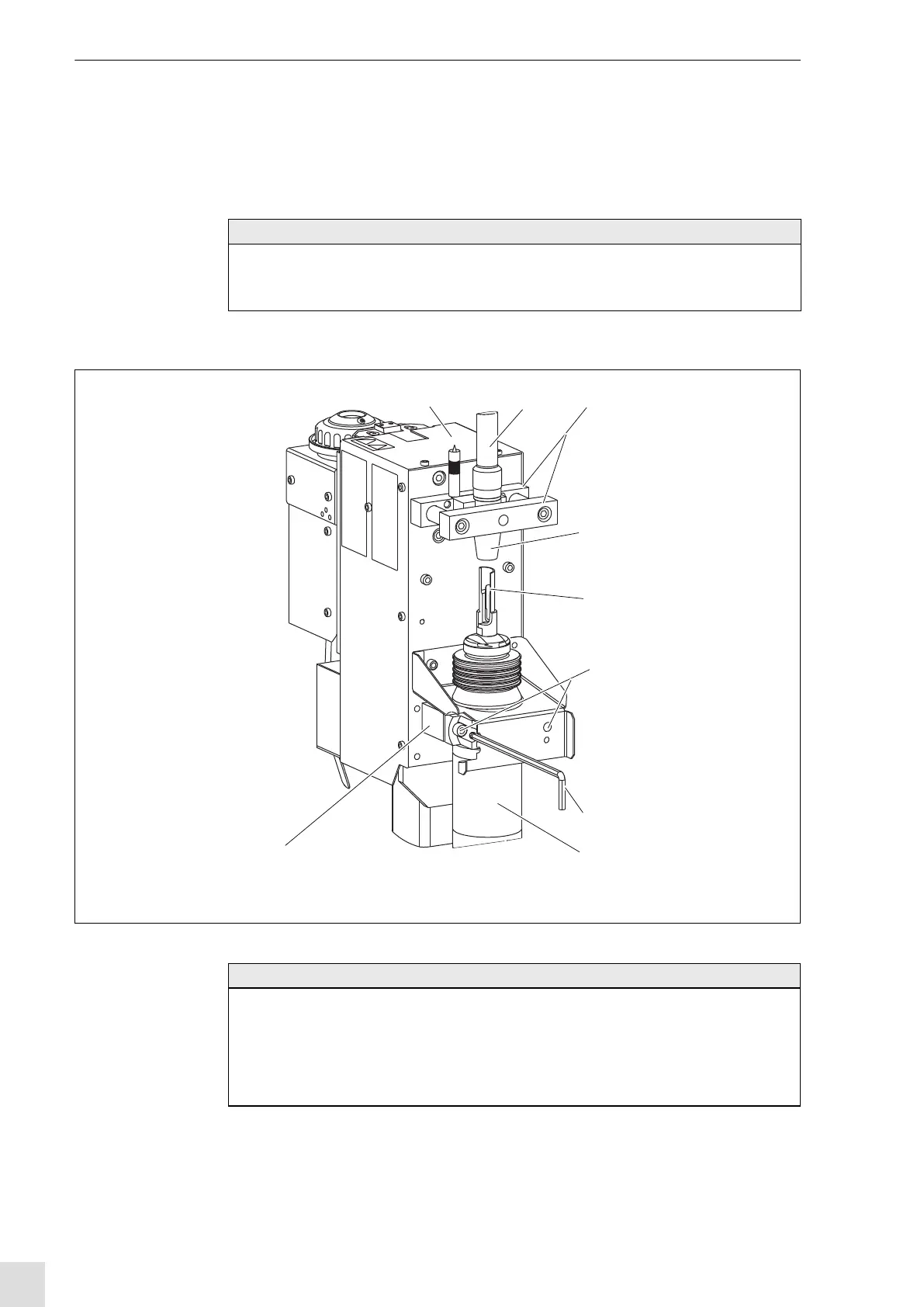

Fig. 18 Setting up the compressed air-motor
123
4
5
6
7
8
9
NOTE
• Before you can set up the compressed air-motor in its final position, the welding torch has to be
positioned in the cleaning station.
 Fig. 17 Setting up the clamping position on page EN-21
• The motor stroke needs to be in the lower position (8) (stroke down).
 Fig. 18 Setting up the compressed air-motor on page EN-22
