EN - 18
6 Putting into operation TCS-Compact
6.2.2 Wire cutting device
1 For better access loosen protection plate and move it backwards
2 Move the welding torch to the cutting position
3 Move the free wire end to the fixed cutter. (lower cutting edge)
4 As soon as you have programmed the desired cutting length, the protection plate must be moved forward
again. The gap between the fixed cutter and the protection plate should be < 4 mm.
1 Countersunk screw M5x20
2 Protection plate
3 Welding torch
4 Stick-out (SO) - free wire end
5 Guiding plate for wire clippings
6 Movable cutting plate
7 Fixed cutting plate
8 Container for wire clippings

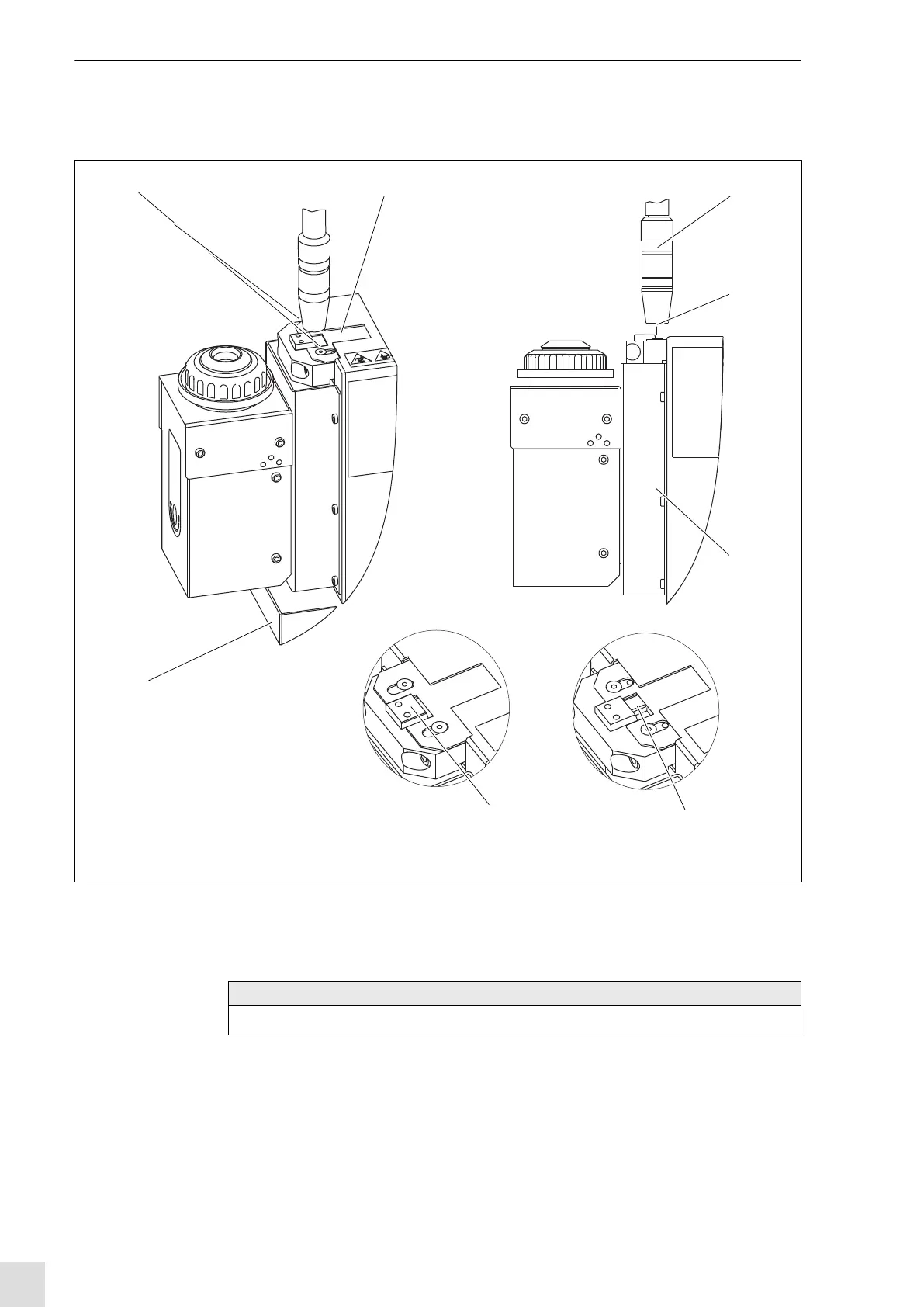

Fig. 13 Wire cutting device
12 3
4
5
7
8
NOTE
• Observe the desired stick-out length.
