6 Putting into operation TCS-Compact
6 Putting into operation
In order to put the injection unit of the welding torch into operation, the two hoses (4) and (8) have to be
connected to the applicable bottles. All other compressed air connections are pre-mounted in the factory.
DANGER
Risk of injury due to unexpected start-up.
For the entire duration of maintenance, servicing, dismounting and repair work, the following instructions
must be adhered to:
• Interrupt the power supply
• Interrupt the compressed air supply.
NOTE
• The system may only be put into operation by trained personnel.

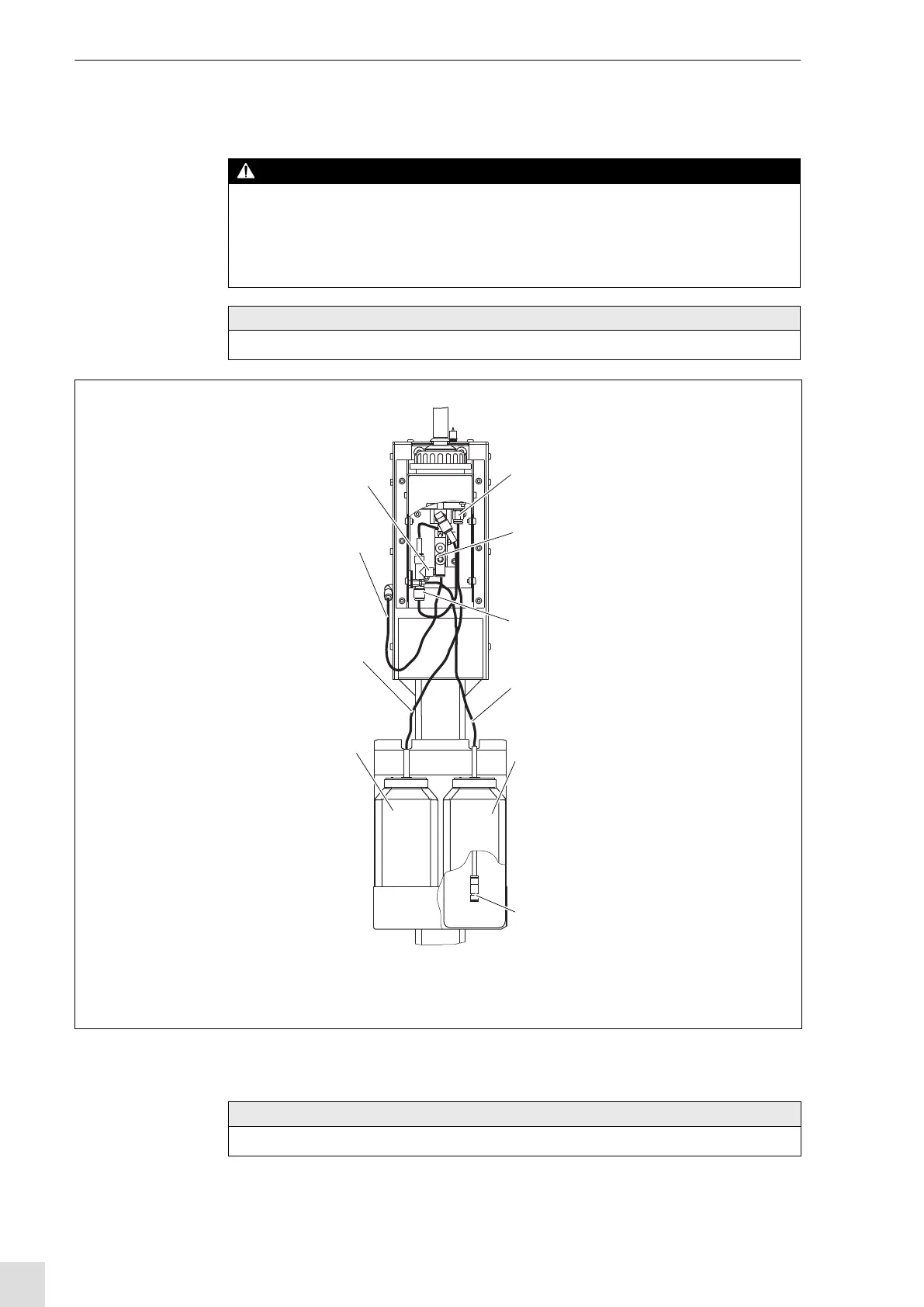

1 Return connection (pre-mounted)
2 Setting amount of suction air
3 Connection anti-spatter to injection unit
4 Suction hose
5 Anti-spatter bottle (full)
6 Non-return valve
7 Anti-spatter drain bottle
8 Hose
9 Compressed-air connection (pre-mounted)
10 Suction connection (pre-mounted)
1
2
3
4
5
6
7
8
9
10
NOTE
• Please observe that the non-return valve (6) is mounted to the suction hose (4).
