Abov A96G174 - Connection of Transmission; Figure 113. Connection of Transmission

To Next Page

To Previous Page

A96G174/A96S174 User’s manual Development tools

201

18.6 Connection of transmission

OCD’s two-wire communication interfaces use the Open-Drain Method (Wire-AND Bi-Directional I/O).

Normally, it is recommended to place a resister greater than 4.7kΩ for the DSCL and DSDA respectively.

The capacitive load is recommended to be less than 100pF. Outside these ranges, because the

communication may not be accomplished, the connection to Debug mode is not guaranteed.

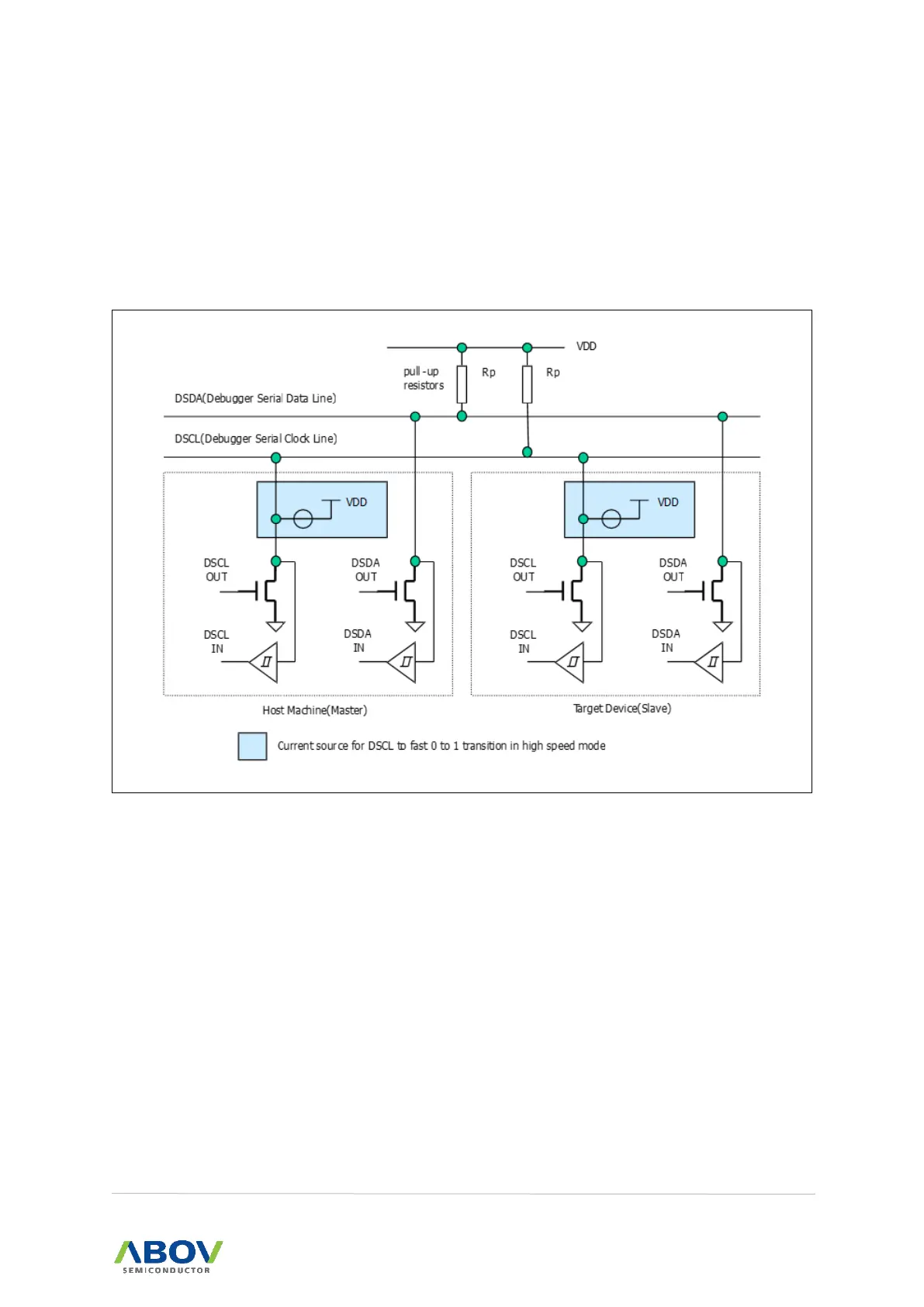

Figure 113. Connection of Transmission
