Abov E-OCD II - Page 40

Debugger Software (for Microsoft Windows) E-OCD II Debugger User’s Manual
40

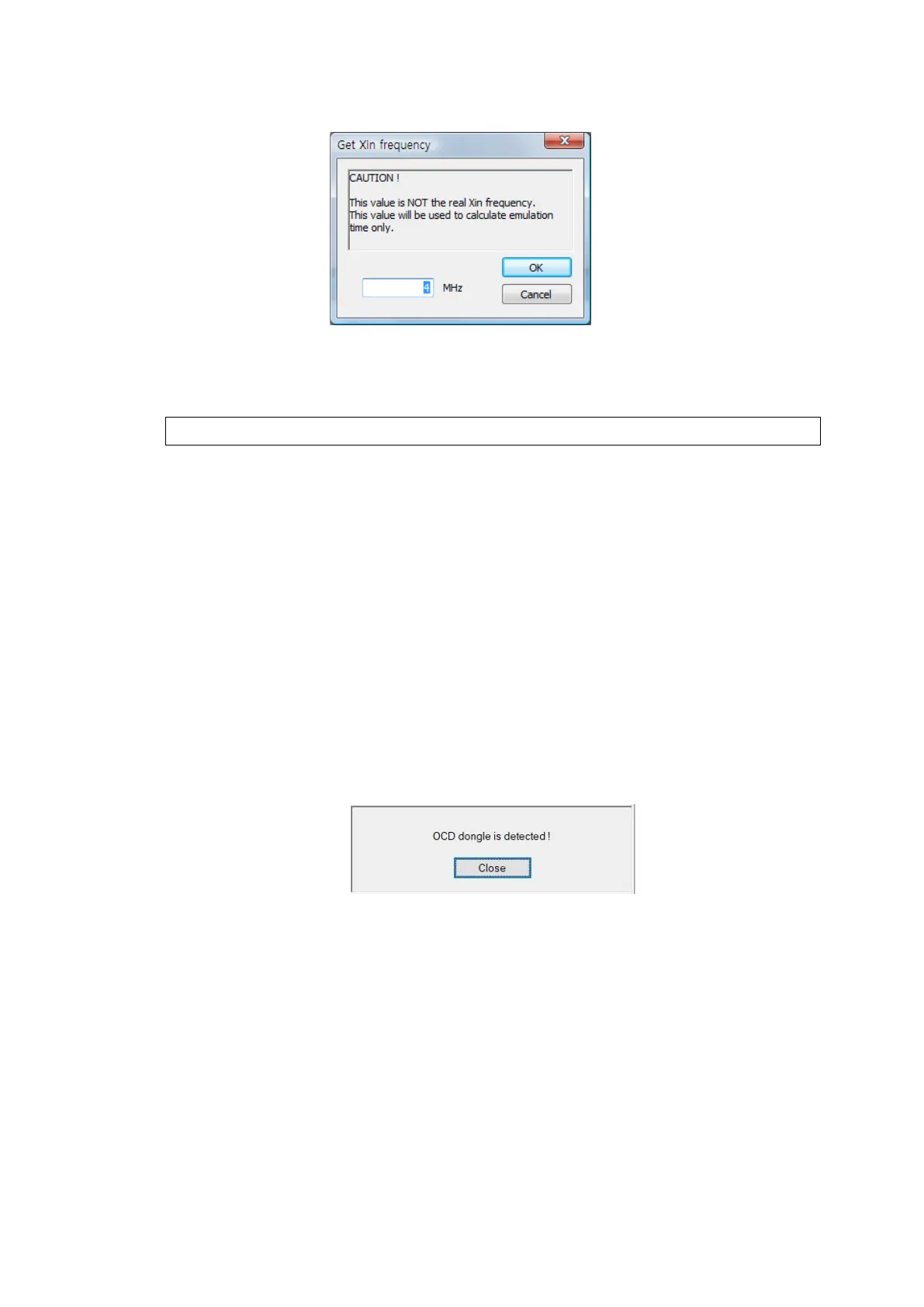

Figure 3-29 Get Xin Frequency Dialog
Note : The value entered here is not of the real emulation clock, but a fake frequency.
If you have connected the OCD II and the RTIME pin, this value is ignored because the debugger can
get real emulation time.
3.3.23 Break/Configure : Change OCD Series
The OCD interface can detect most of its compatible devices automatically. But as some devices
have a slightly different interface algorithm, the OCD interface must be re-configured to interact with
those devices.
To change the target OCD series, perform the following:
1) Select the target device series in the dialog box and click OK.
Figure 3-30 Message Box for OCD Interface
