4. Lift up the upper case by starting from the top edge of the upper case. Refer to
Figure 3-20.
5. Release the tabs on the bottom edge of the upper case.
6. Grasp and remove the upper case from the system.

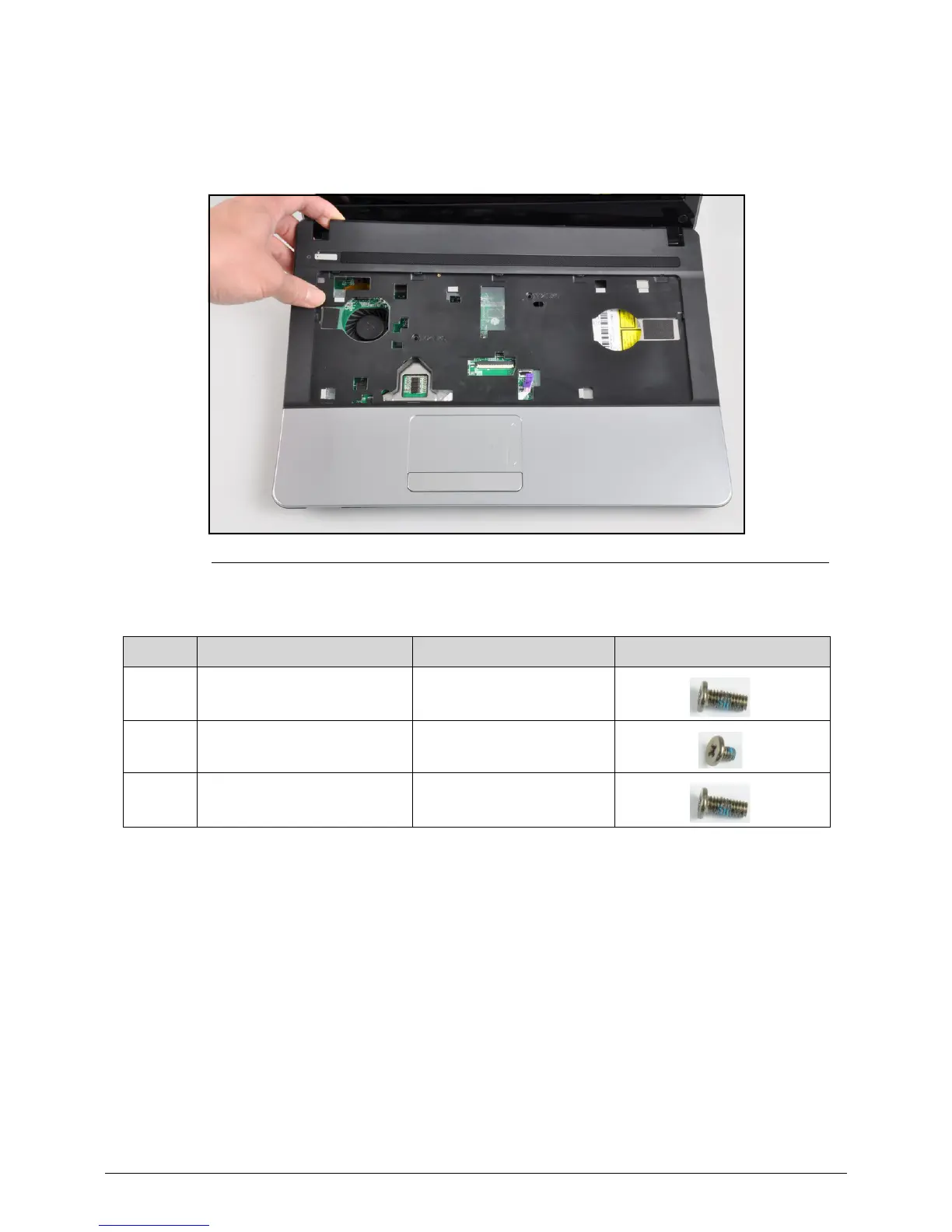

Figure 3-20. Upper Case Removal
ID Size Quantity Screw Type
Red
Call out
M2.5*6 13
Green
Call out
M2*3 5
CM2.5*6 2
