Machine Maintenance Procedures 3-49
Replacing the LCD Panel 0
1. Place LCD panel (C) on the LCD cover (Figure 3-53).

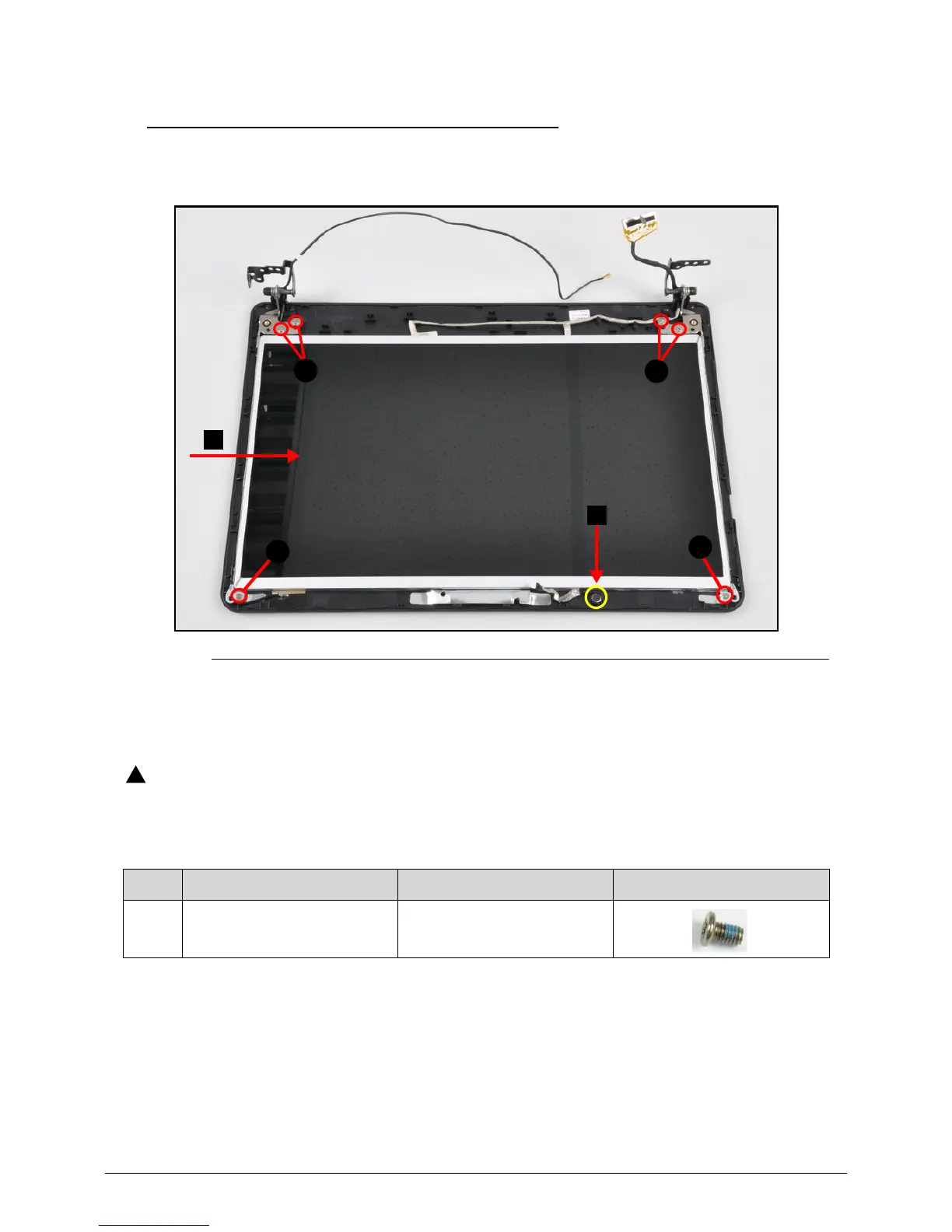

Figure 3-53. LCD Panel
2. Install and secure six (6) screws (A) to the LCD panel on the LCD cover (Figure 3-53).
3. Place the microphone (B) back to its compartment on the LCD cover (Figure 3-53).
Make sure all cables are moved away from the device to avoid damage
during LCD Panel installation.
ID Size Quantity Screw Type
AM2.5*4 6
