Machine Maintenance Procedures 3-55
Replacing the LCD (Liquid Crystal Display) Module 0

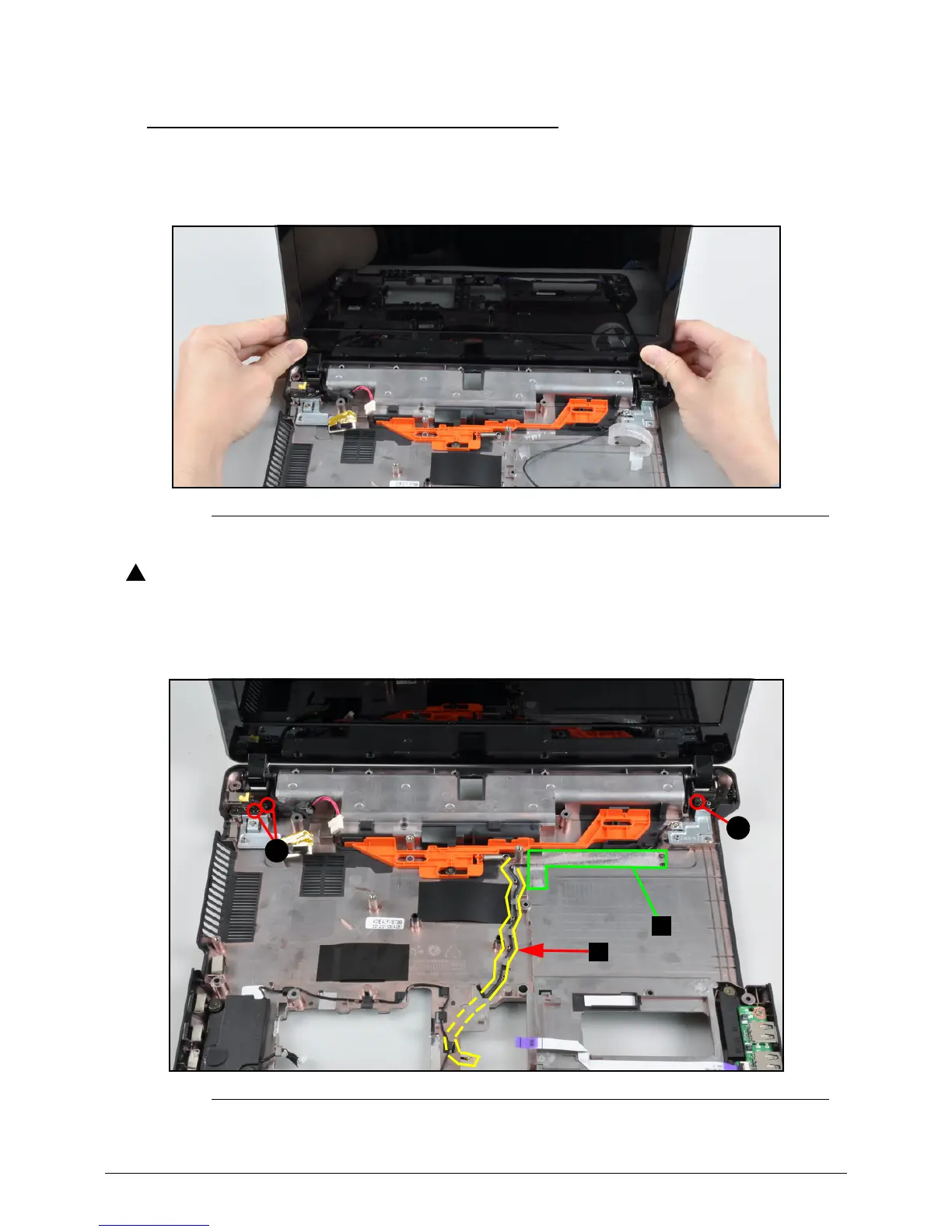

1. Align the LCD hinges with the hinge guides on the Base Assembly. The LVDS cable
and the antenna must be placed above the LCD hinges (Figure 3-62).
Figure 3-62. Replacing the LCD Module
Make sure all cables and antennas are moved away from the device to avoid
damage during installation.
2. Install and secure three (3) screws (A) to LCD hinges (Figure 3-63).
Figure 3-63. LCD Module
