Machine Maintenance Procedures 3-13
Keyboard Removal 0
Prerequisite:
Battery Pack Removal

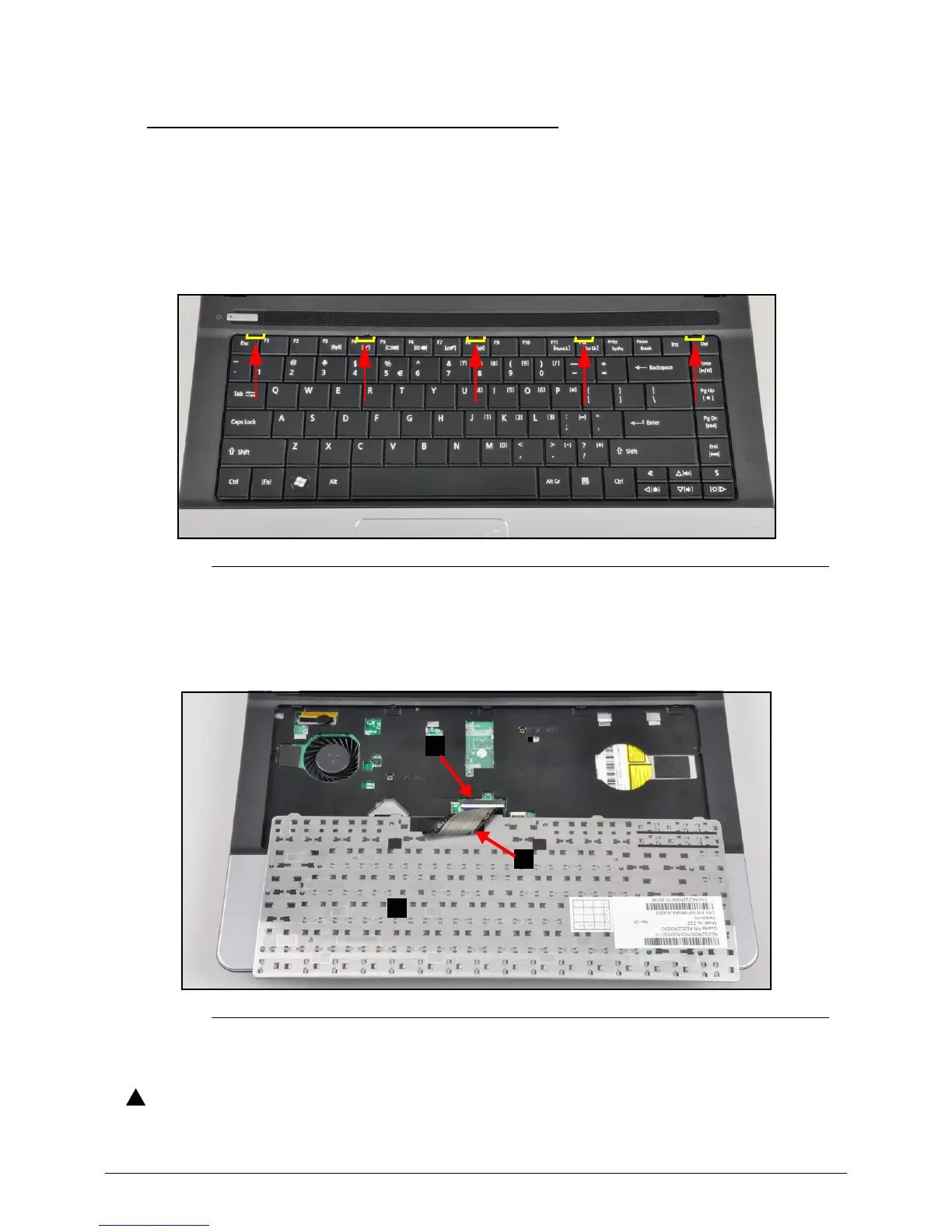

1. Press downward on the five (5) locking latches until the keyboard disengages and
separates from the system (Figure 3-8).
Figure 3-8. Keyboard Latches
2. Turn the keyboard over so that the keyboard (C) is face down on the palm rest
(Figure 3-9).
3. Disconnect keyboard FPC (A) from mainboard connector (B) (Figure 3-9).
Figure 3-9. Keyboard FPC
4. Remove the keyboard (C) from base assembly (Figure 3-9).
Keyboard FPC (Flexible Printed Circuit) can be damaged if removed while
mainboard connector is locked.
