Machine Maintenance Procedures 3-41
Camera Module Removal 0
Prerequisite:
LCD Bezel Removal

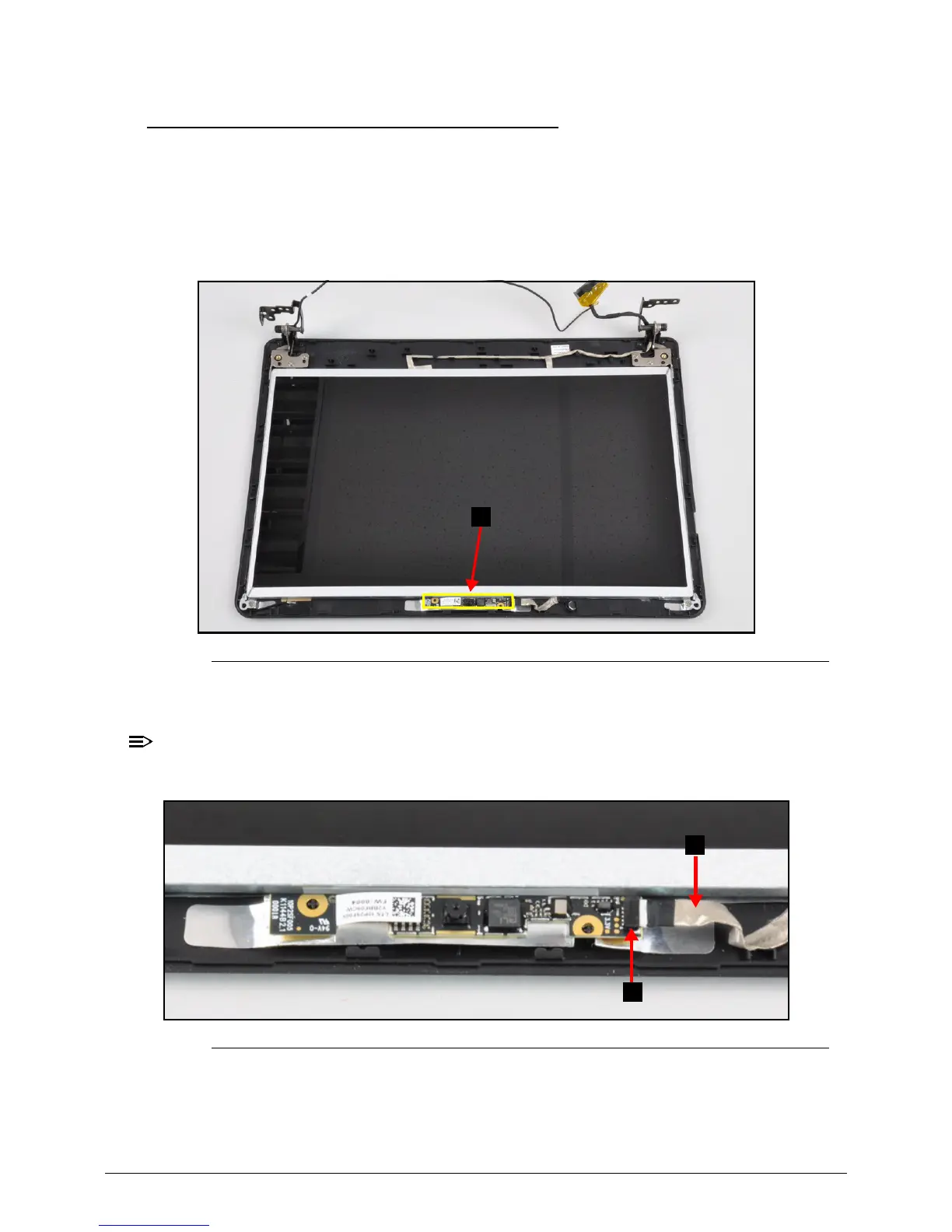

1. Find the camera module (A) on the LCD cover (Figure 3-40).
Figure 3-40. Camera Module Location
2. Disconnect the camera cable (B) from connector (C) (Figure 3-41).
Use care not to damage the cable.
Figure 3-41. Camera Cable
3. Lift the camera module (A) from the adhesive and remove it.
To Next Page
