Acer Aspire E1-421 - Reassembly Procedures

3-46 Machine Maintenance Procedures
LCD Reassembly Process 0
Replacing the LVDS and Camera Cable 0

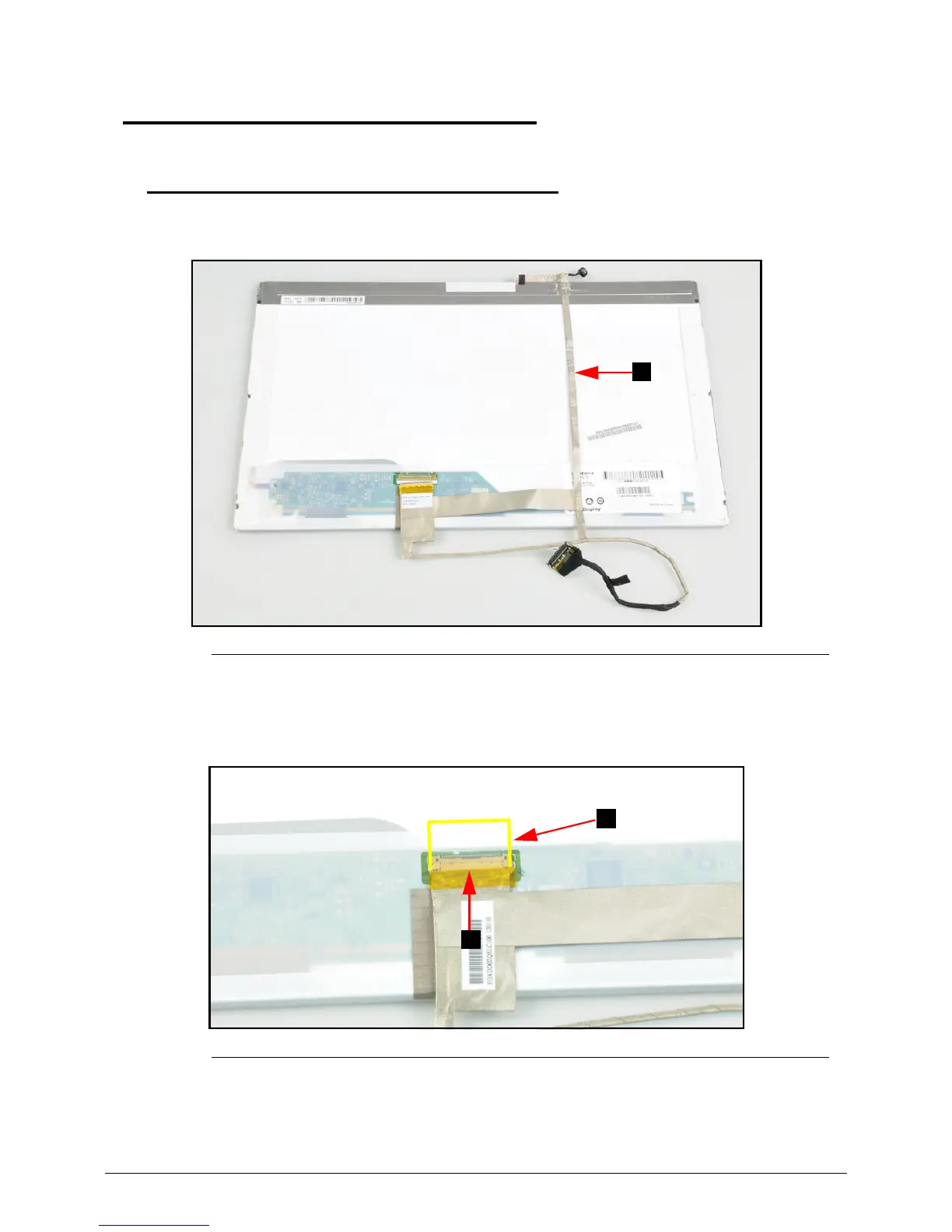

1. Place LVDS and camera cable (A) on the rear of the LCD panel (Figure 3-48).
Figure 3-48. LVDS and Camera Cable
2. Connect the LVDS cable to the LCD panel connector (E) and secure the clear mylar
tape (D) (Figure 3-49).
Figure 3-49. LVDS Cable
A
E
D
