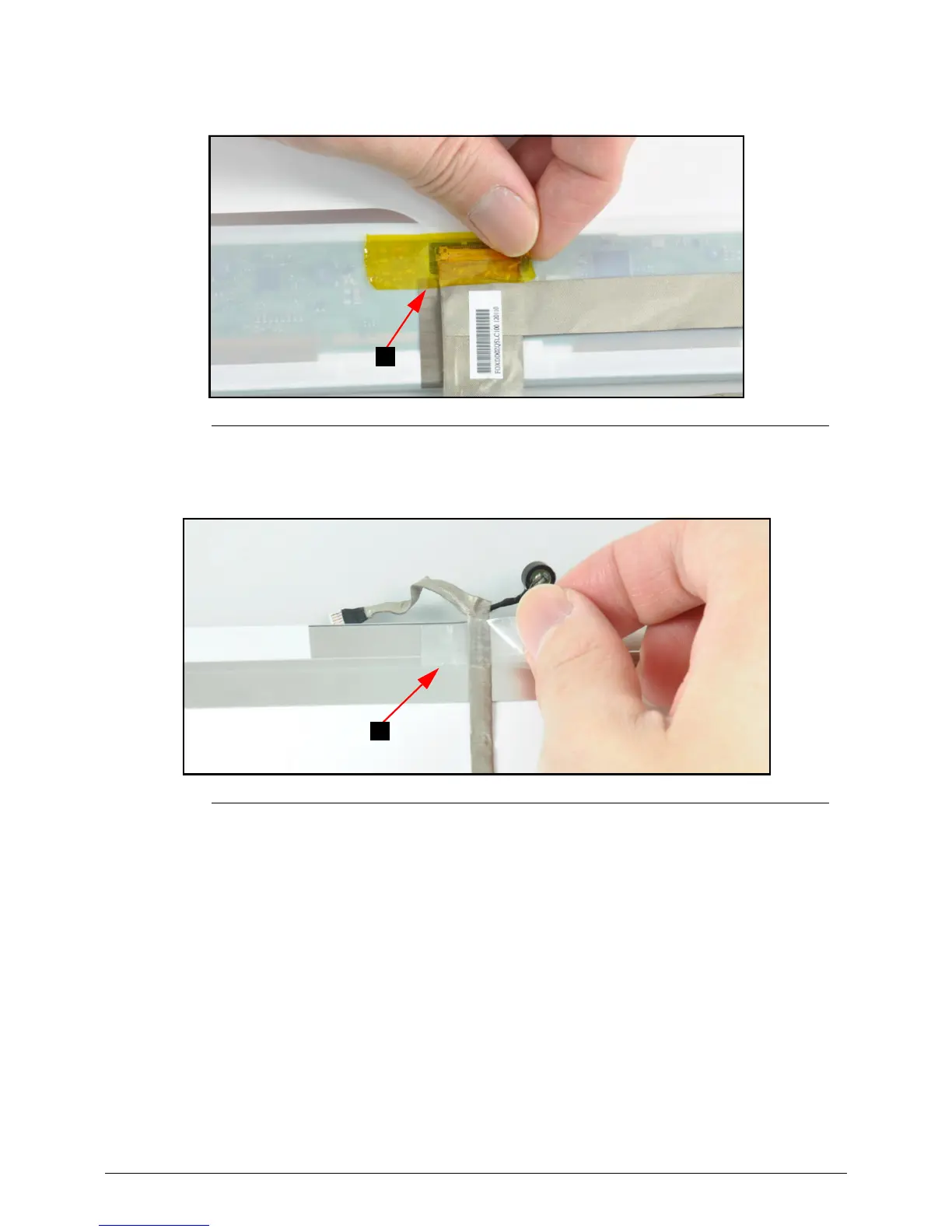

3. Adhere the yellow tape (C) to secure the LVDS cable in place (Figure 3-50).
Figure 3-50. LVDS Cable
4. Adhere the clear mylar tape (B) to secure the camera cable in place (Figure 3-51).
Figure 3-51. Camera Cable
5. Replace the adhesives to secure the LVDS and camera cable on the rear of the LCD
panel in place.
