Acer Aspire E1-421 - System Exploded Diagrams

6-4 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

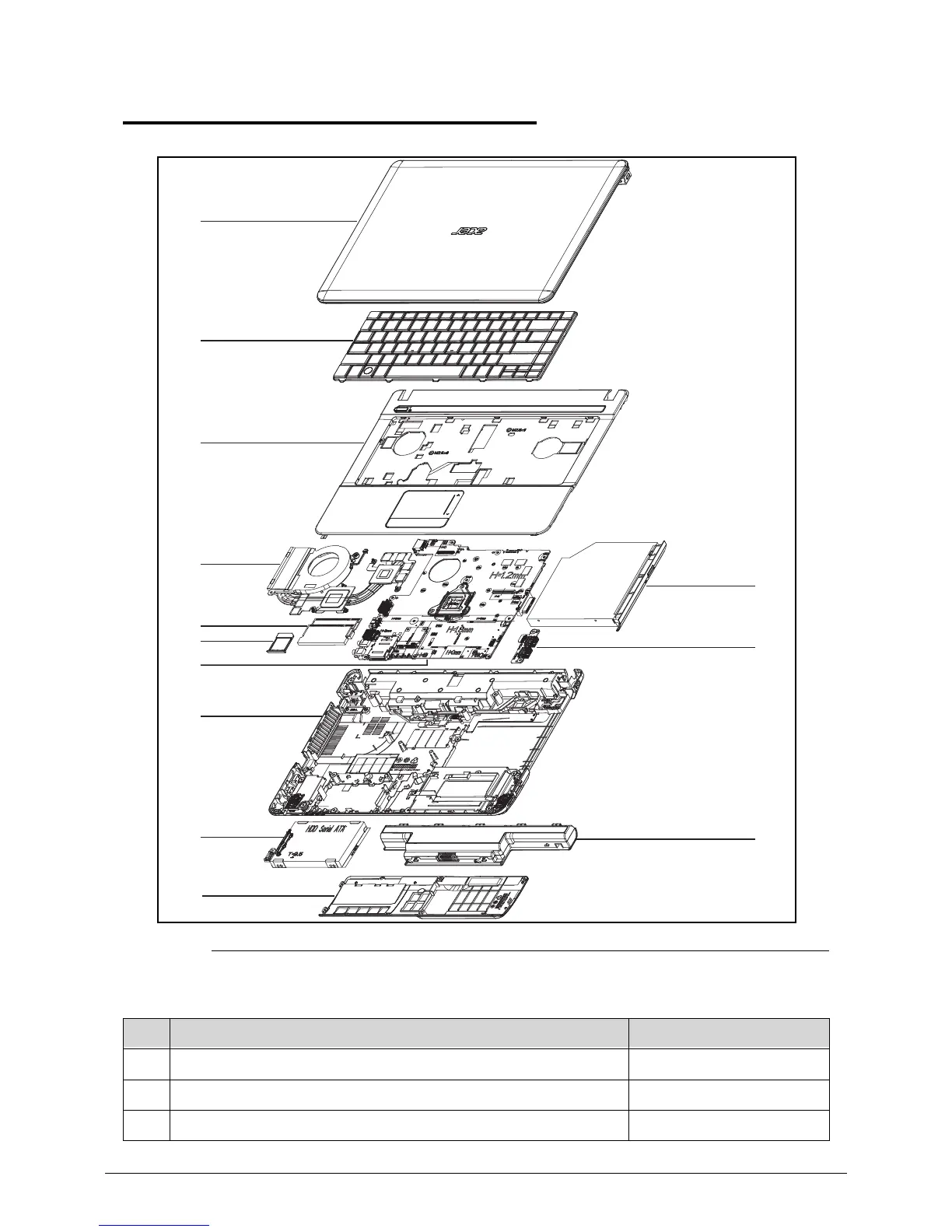

Figure 6-1. System Exploded Diagram
Table 6-1. System Exploded Diagram
No. Description Acer Part No.
1 LCD Assembly 6M.M0ZN7.002
2 Keyboard NK.I1413.002
3 Upper Case 60.M0RN7.001
13
12
11
1
3
4
6
10
9
8
7
5
2
