3-36 Machine Maintenance Procedures
Support Bracket Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Find Support Brackets (B) on the base assembly. Refer to Figure 3-35.
2. Remove four (4) screws securing the support brackets in place (Figure 3-35).
3. Remove the support brackets from the base assembly.

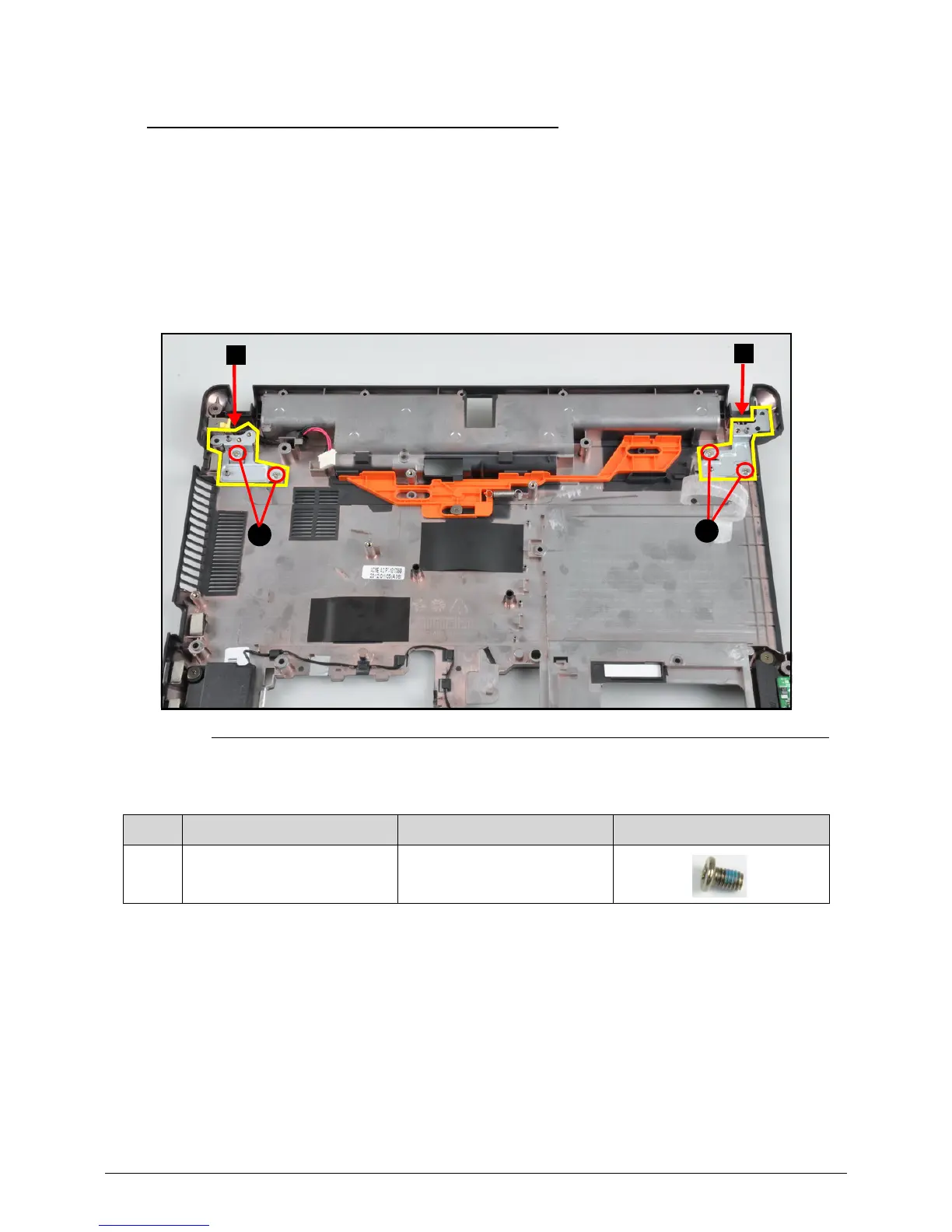

Figure 3-35. Support Brackets
ID Size Quantity Screw Type
AM2.5*4 4
