LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
1. Peel the left end of the tape (C) securing the antenna on the base assembly and
remove the antenna from the cable guides (Figure 3-32).
2. Remove three (3) screws (A) from LCD hinges (Figure 3-32).

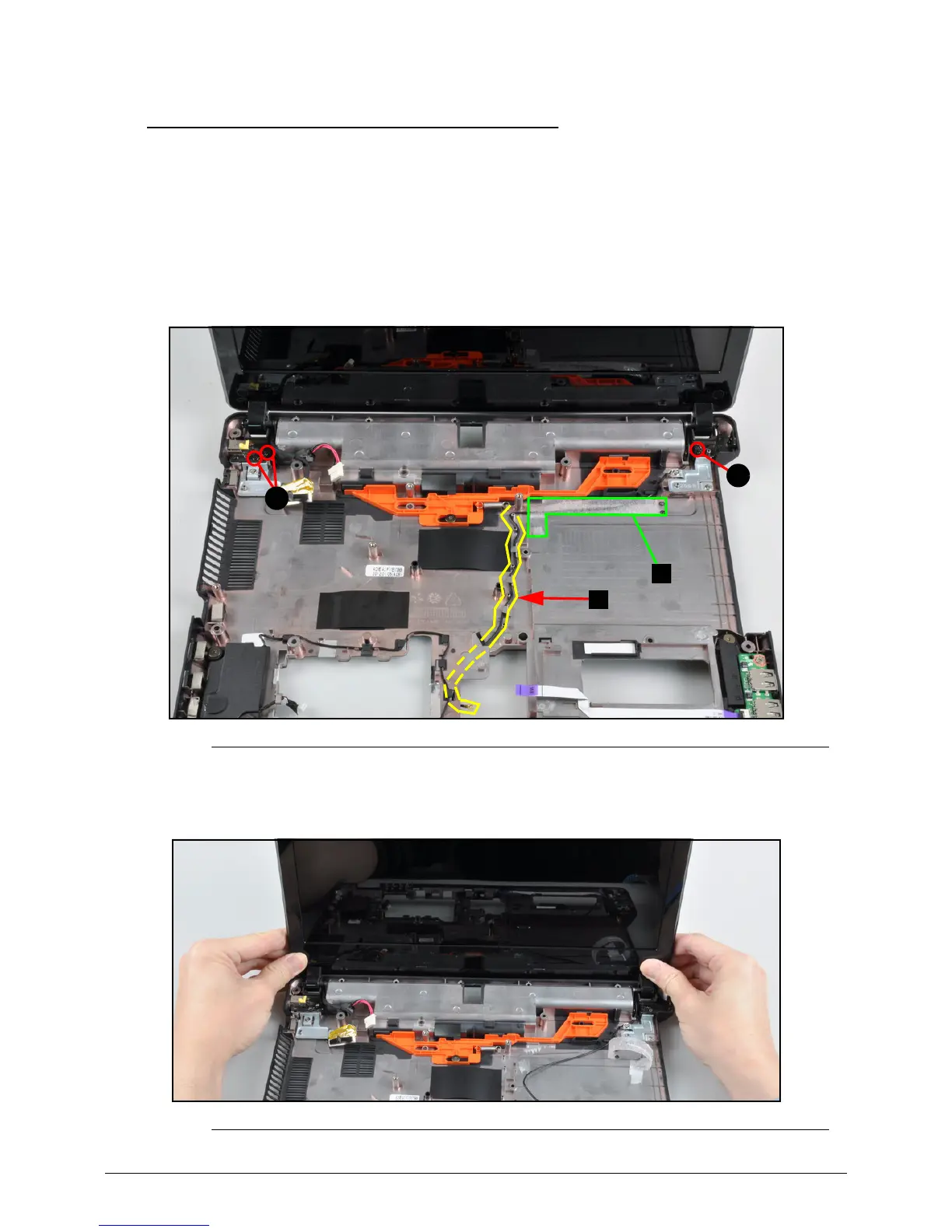

Figure 3-32. LCD Module
3. Remove the LCD module from the base assembly (Figure 3-33).
Figure 3-33. LCD Module Removal
