External Module Reassembly Process 0
Replacing the HDD (Hard Disk Drive) Module 0

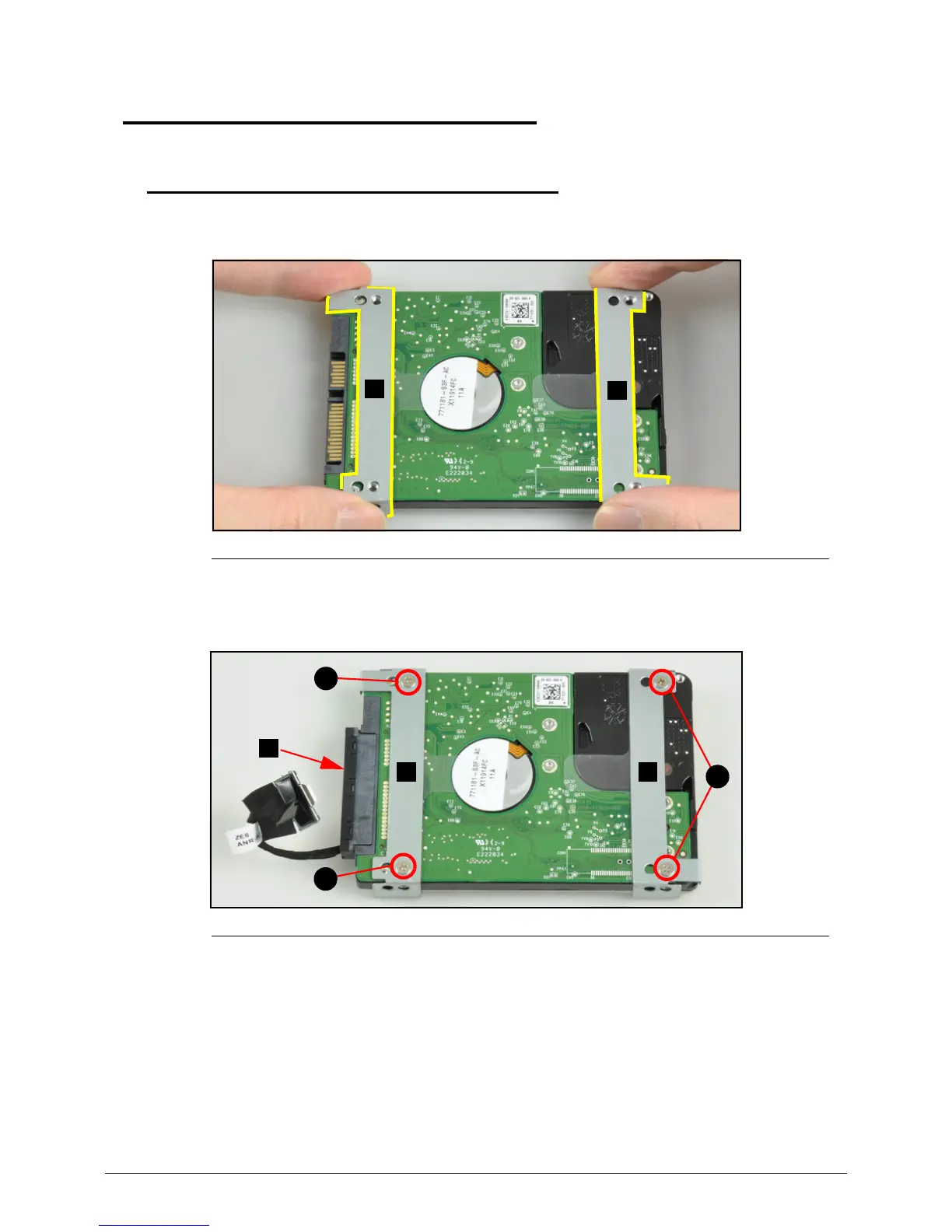

1. Place HDD brackets (G) onto HDD (Figure 3-76).
Figure 3-76. HDD Bracket
2. Install and secure four (4) screws (F) to HDD brackets (G) (Figure 3-77).
Figure 3-77. HDD Module
3. Attach HDD cable to HDD connector (E) (Figure 3-77).
G
G
E
G
F
F
G
F
