3-68 Machine Maintenance Procedures
4. Place HDD module onto the base assembly and connect HDD module to mainboard
connector (C) (Figure 3-78).

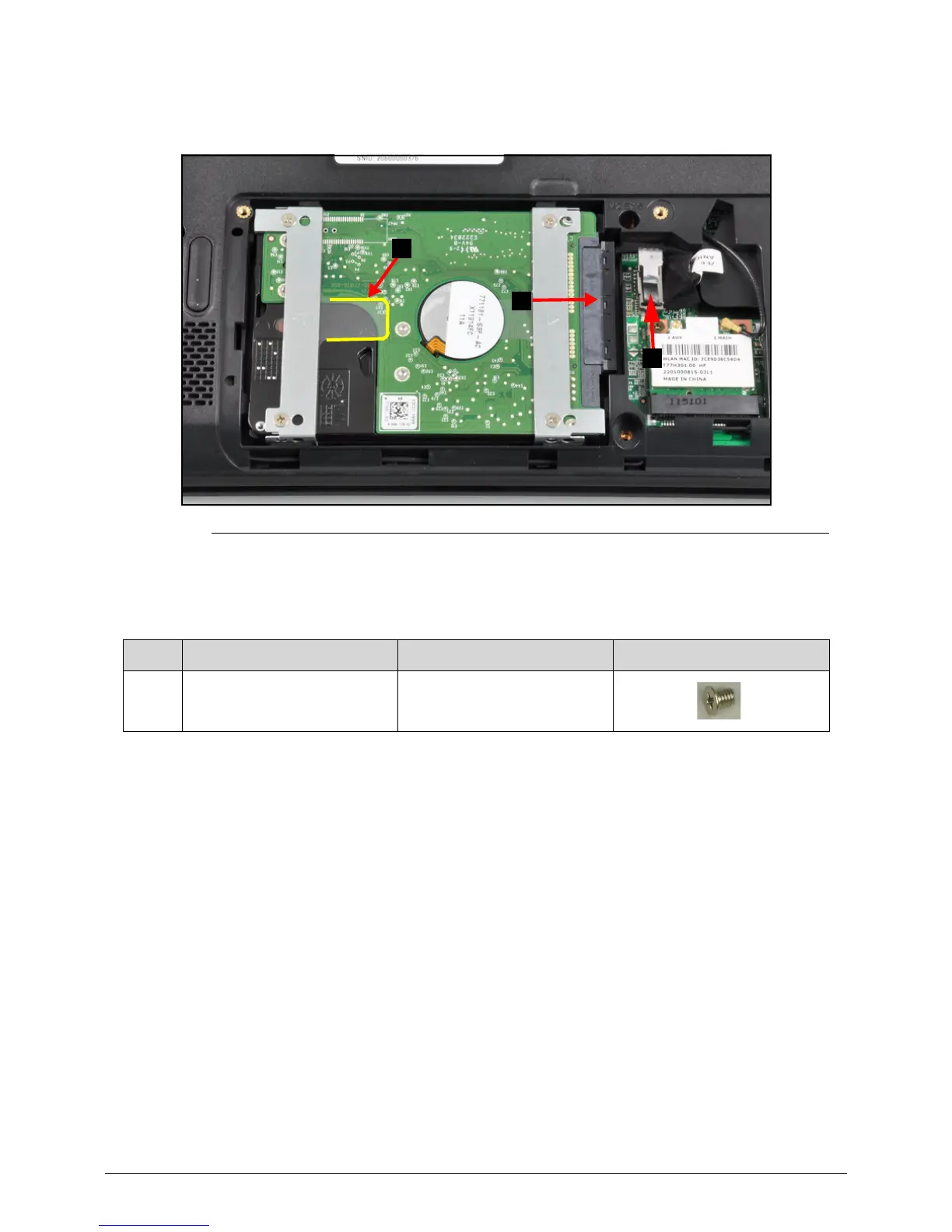

Figure 3-78. HDD Module
5. Connect HDD cable to mainboard connector (D) (Figure 3-78).
ID Size Quantity Screw Type
F M3.0*3.5 Ni 4
D
C
B
