RTC battery Removal 0
Prerequisite:
Mainboard Removal
1. Find the RTC battery (A) on the mainboard. Refer to Figure 3-29.

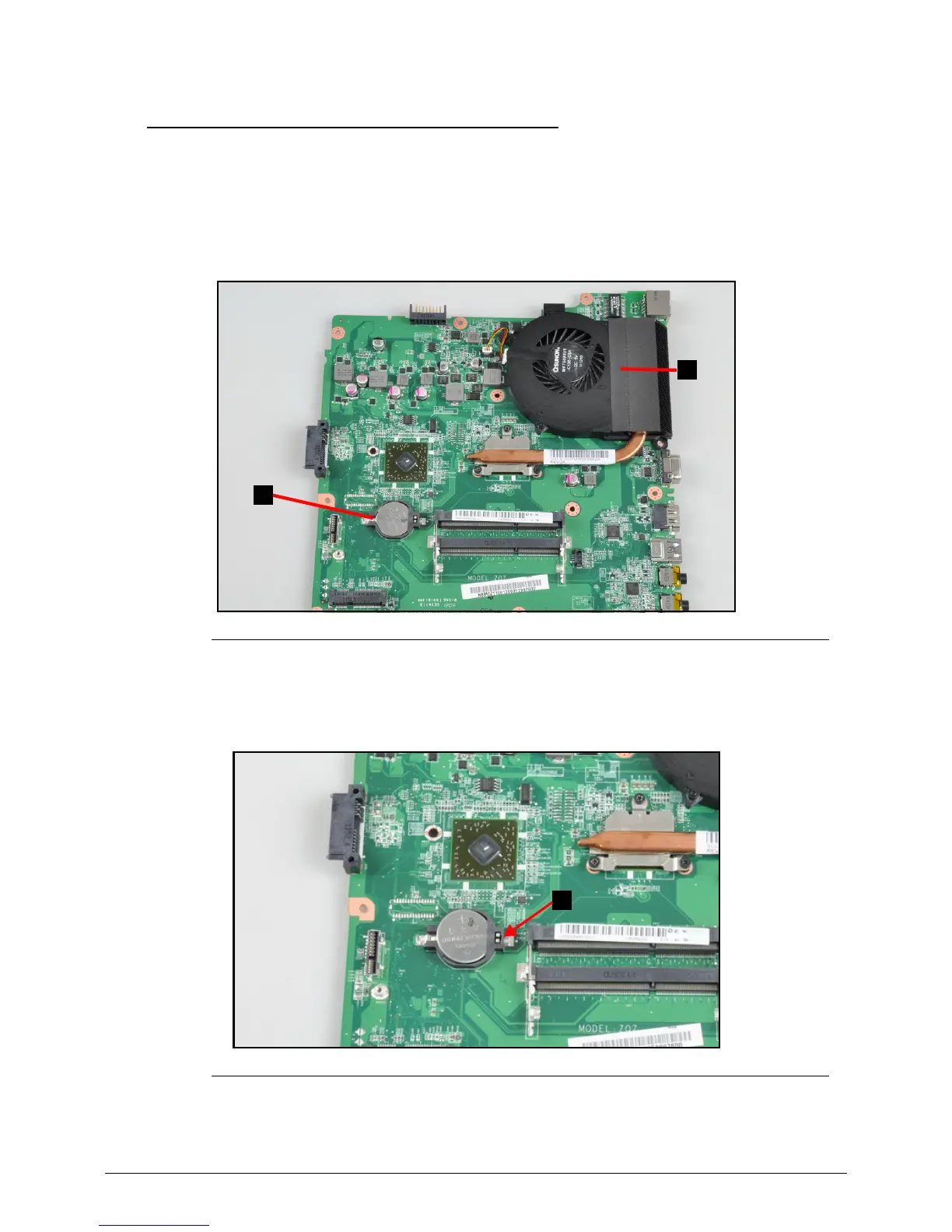

Figure 3-29. RTC battery & Thermal Module Location
2. Using plastic tweezers, push the RTC battery through the gap in the mainboard
connector (B) to release the battery. Refer to Figure 3-30.
Figure 3-30. RTC battery
3. Remove the RTC battery from mainboard connector.
