3-50 Machine Maintenance Procedures

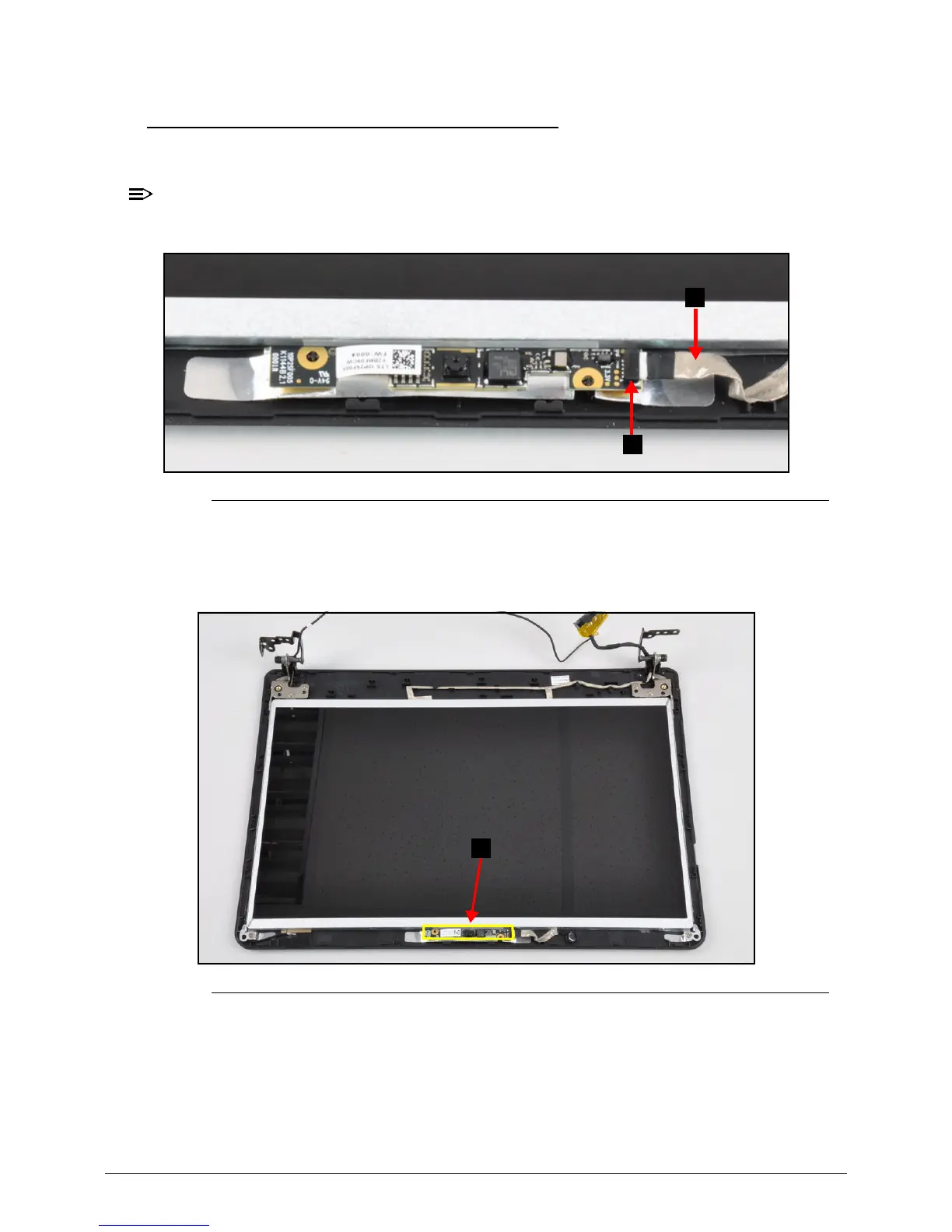

Replacing the Camera Module 0
1. Connect the camera cable (B) to connector (C) (Figure 3-54).
Use care not to damage the cable.
Figure 3-54. Camera Cable
2. Place the camera module (A) on the LCD cover and secure it in place with adhesives
(Figure 3-55).
Figure 3-55. Camera Module Location
To Next Page
