5-4 Jumper and Connector Locations

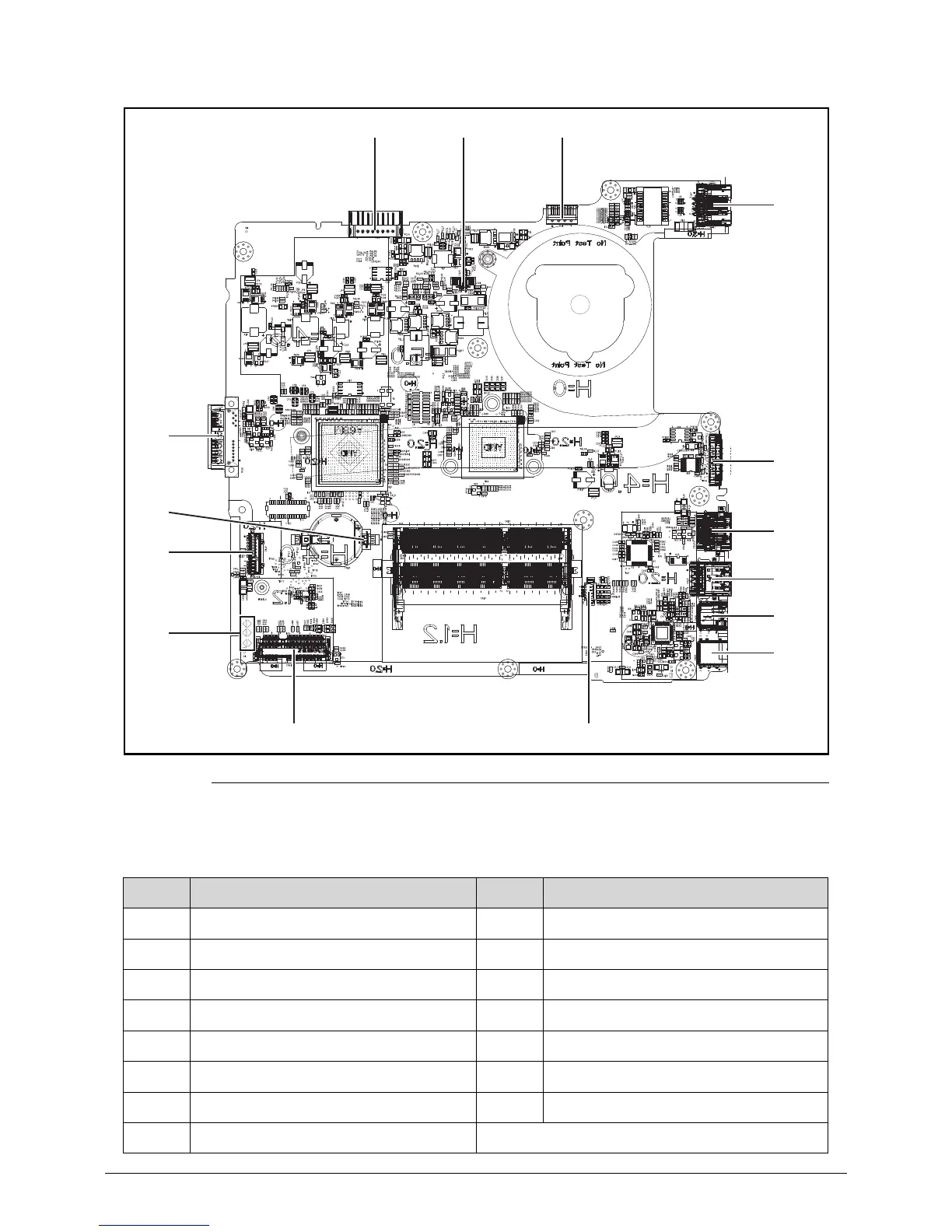

Figure 5-2. Mainboard Bottom
Table 5-2. Mainboard Bottom
Item Description Item Description
1 ODD Connector 9 HDMI Connector
2 RTC battery Connector 10 VGA Connector
3 HDD Connector 11 RJ-45 Connector
4 Mini Card Connector 12 DC-IN Connector
5 Speaker Connector 13 Fan Connector
6 Headphone Connector 14 Battery Connector
7 Microphone Connector A CMOS Jumper
8 USB Connector
14 13 12
6
7
8
9
10
11
1
2
3
A
54

Acer Aspire E1-421 Specifications

General

Graphics	AMD Radeon HD 7310
Weight	2.2 kg
Processor	AMD Dual-Core E1-1200
RAM	2GB DDR3
Storage	320GB HDD
Display	14-inch HD (1366 x 768)
Operating System	Windows 7 Home Basic or Windows 8
Battery	6-cell Li-ion
