6-6 FRU (Field Replaceable Unit) List

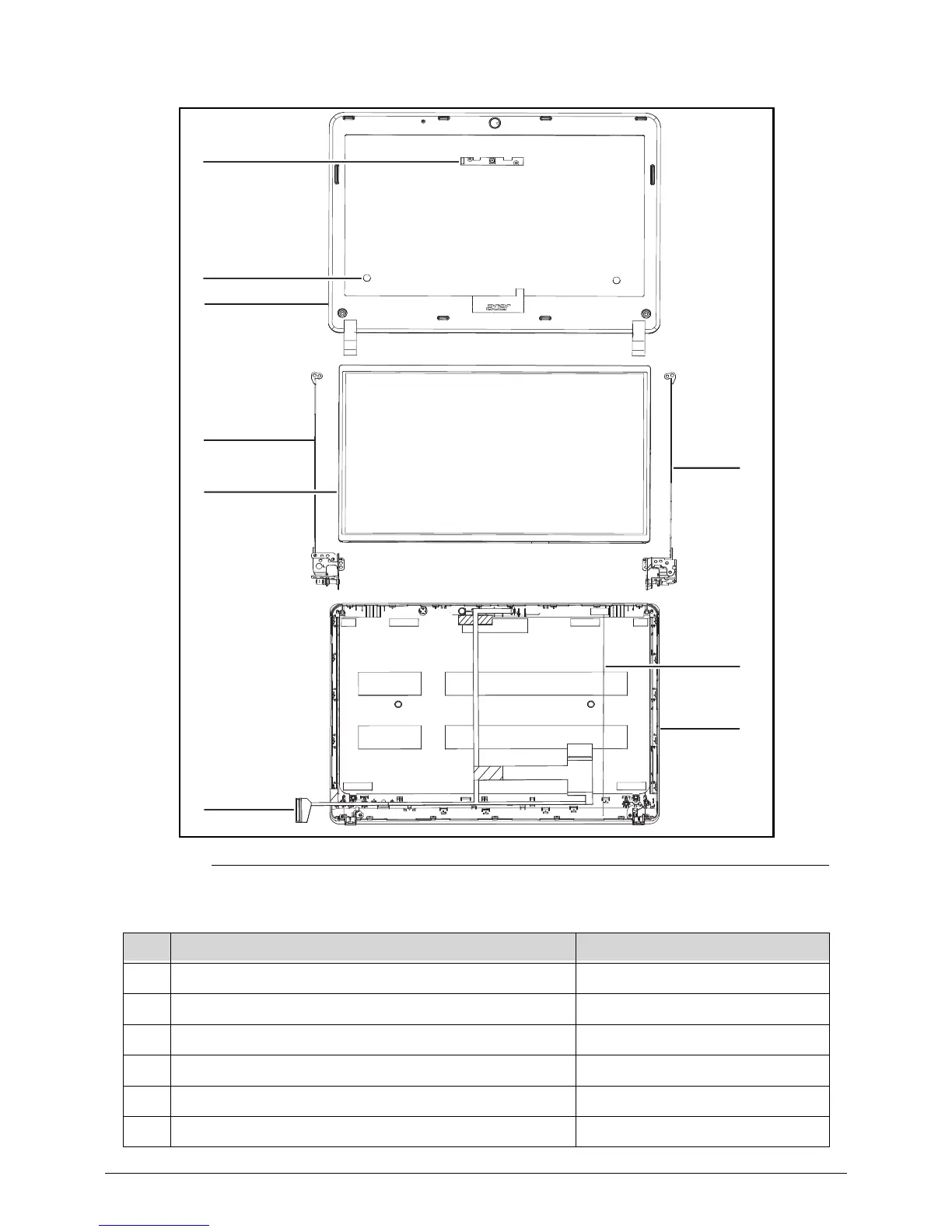

Figure 6-2. LCD Assembly Exploded Diagram
Table 6-2. LCD Assembly Exploded Diagram
No. Description Acer Part No.
1 Camera Module NC.21411.002
2 LCD Screw Mylar 47.R6Z07.003
3 LCD Bezel 60.M0RN7.005
4 LCD Bracket (Left) 33.M0RN7.002
5 LCD LED Panel KL.1400D.002
6 LVDS Cable 50.RYYN7.006
1
2
3
7
8
9
4
5
6
