Service and Maintenance 3-47
3. Secure the two (2) screws to the mainboard and the lower case.

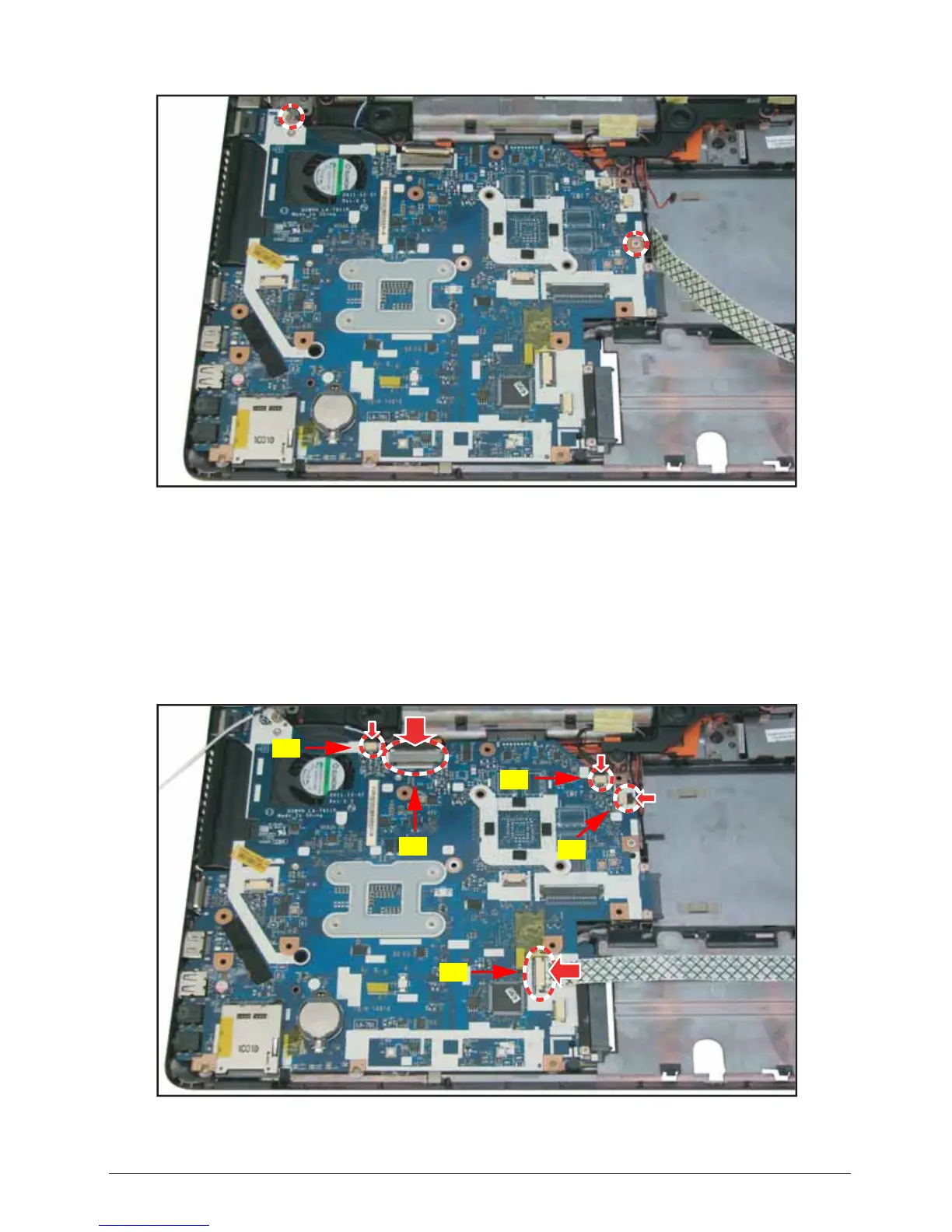

Figure 3:67. Securing the Mainboard Screws
4. Connect the following to the mainboard connectors:
• Left speaker cable connector (A)
• LVDS cable connector (B)
• Microphone cable connector (C)
• Right speaker cable connector (D)
• USB module cable connector (E)
Figure 3:68. Connecting the Cable Connectors
