Service and Maintenance 3-73
Touchpad FFC Removal
Prerequisite:
Upper Case Removal on page 3-34
1. Locate the touchpad FFC (flat flexible cable) on the underside of the upper case.
2. Remove the protective tape covering the touchpad cable connector.

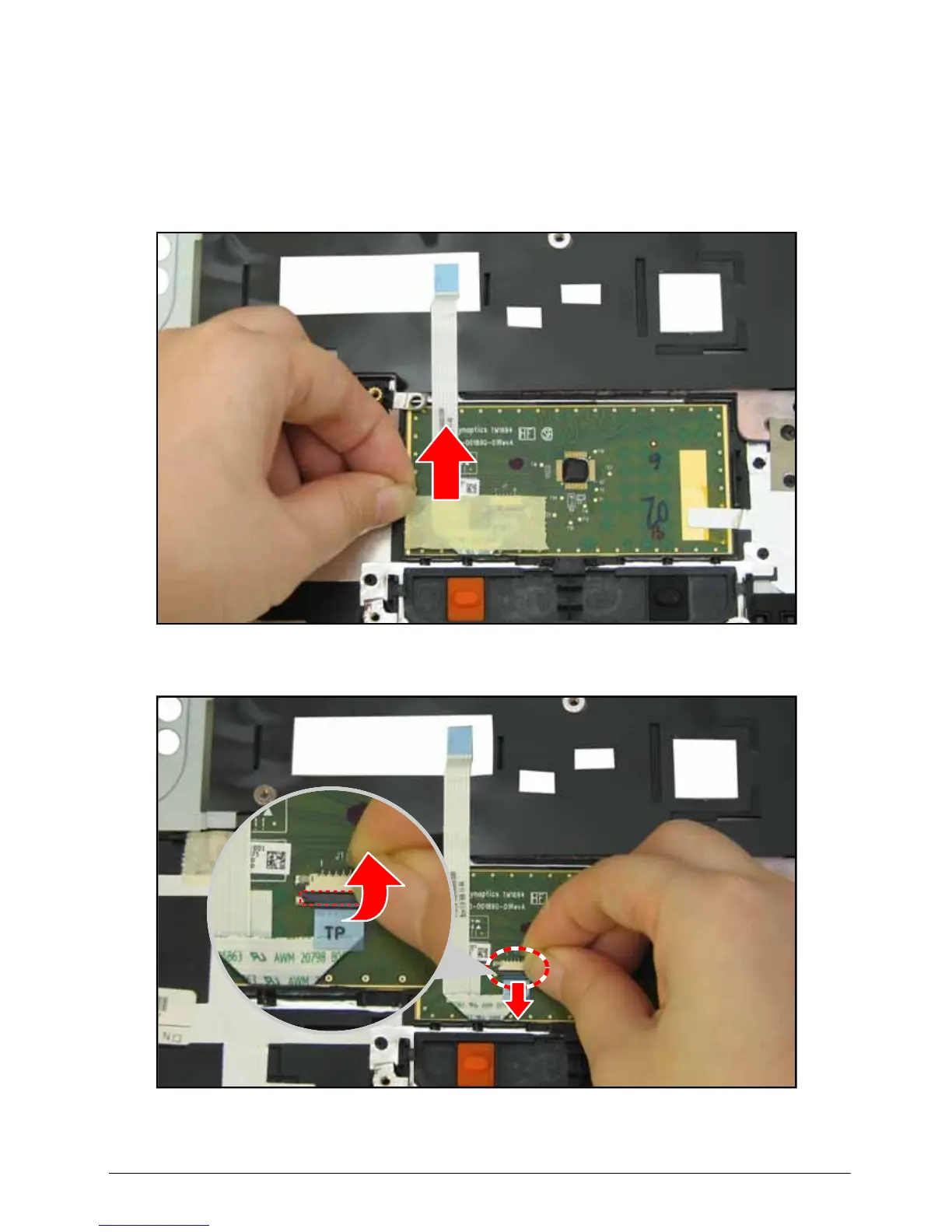

Figure 3:109. Removing the Touchpad Cable (1 of 2)
3. Lift the connector clip to disconnect the touchpad cable connector.
Figure 3:110. Removing the Touchpad Cable (2 of 2)
