Service and Maintenance 3-105
Microphone Module Removal
Prerequisite:
LCD Panel Removal on page 3-91
1. On the LCD cover, remove the metallic tape securing the microphone cable.

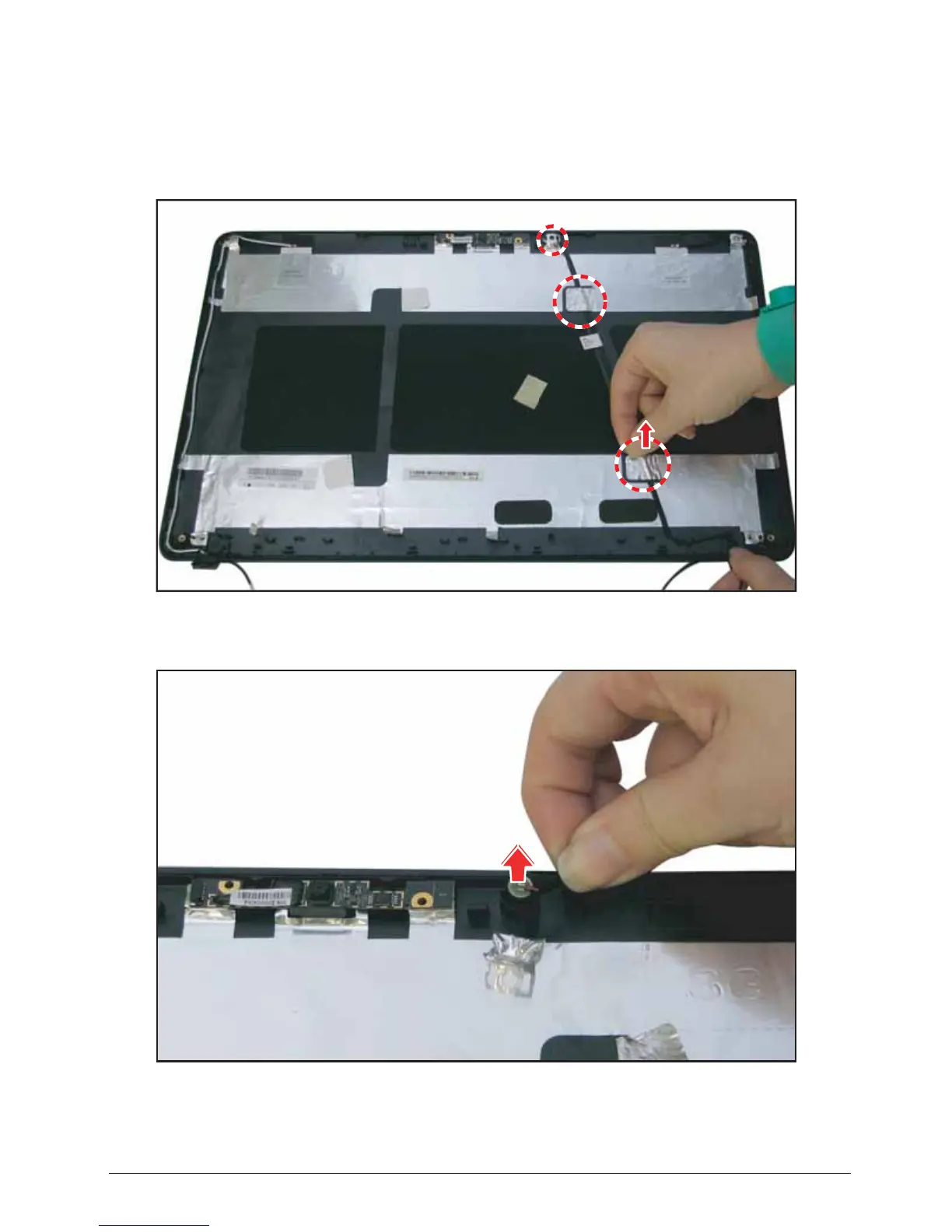

Figure 3:159. Removing the Microphone Module (1 of 2)
2. Lift to remove the microphone from the slot on the LCD cover.
Figure 3:160. Removing the WLAN Antennas (2 of 2)
