Service and Maintenance 3-43
Mainboard Removal
Prerequisite
Upper Case Removal on page 3-34
1. Locate the WLAN antenna cables (see Figure 3:10, page 3-12).
2. Disconnect the main (black) and the auxiliary (white) antenna cable connectors and remove
from the guides of the lower case.

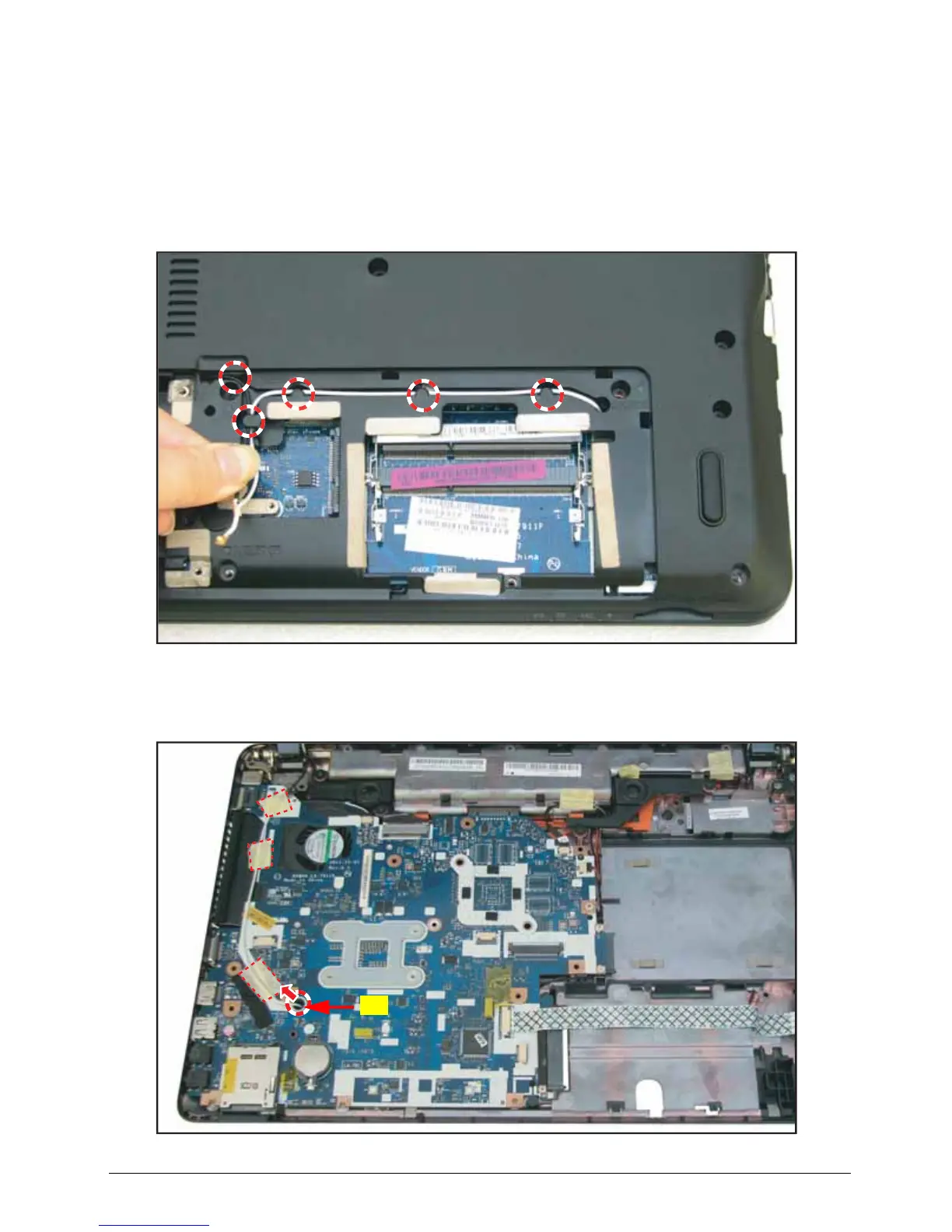

Figure 3:59. Removing the Antenna Cables (1 of 2)
3. Pull the auxiliary (A) antenna cable to pass through the mainboard hole, detach the adhesive
tapes, and then set the antenna cable aside.
Figure 3:60. Removing the Antenna Cables (2 of 2)
