FRU (Field Replaceable Unit) List 6-5
Lower Case Assembly

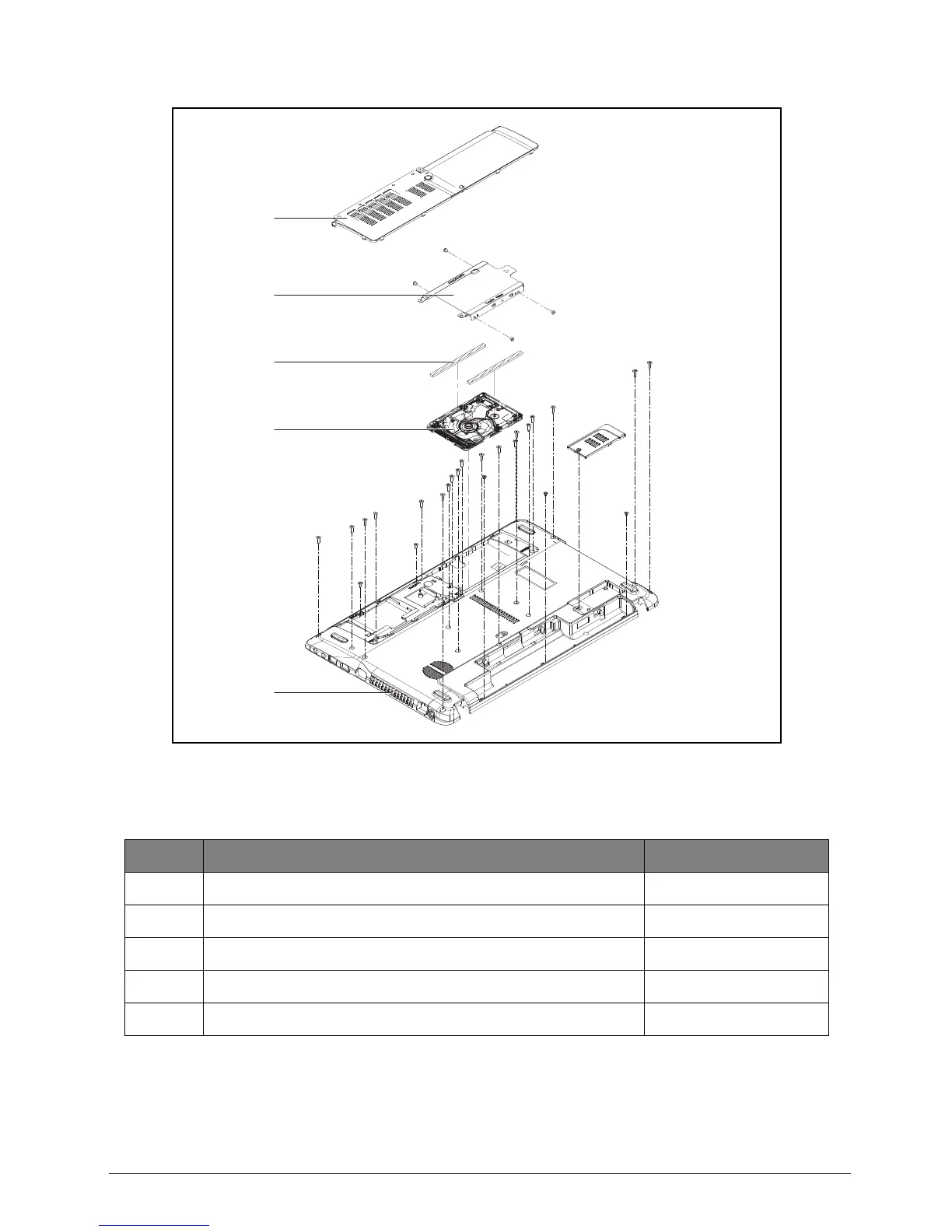

Figure 6:2. Lower Case Assembly Exploded Diagram
Table 6:2. Lower Case Assembly Exploded Diagram
No. Description P/N
1 HDD DOOR 60.M09N2.004
2 HDD BRACKET 33.M09N2.001
3 HDD SUPPORT RUBBER FOR H7.0 HDD 47.M09N2.003
4 HDD
TBD
5 LOWER CASE 60.M09N2.002
1
2
3
4
5
To Next Page
