3-90 Service and Maintenance
CCD Module Installation
1. Connect the camera cable connector.

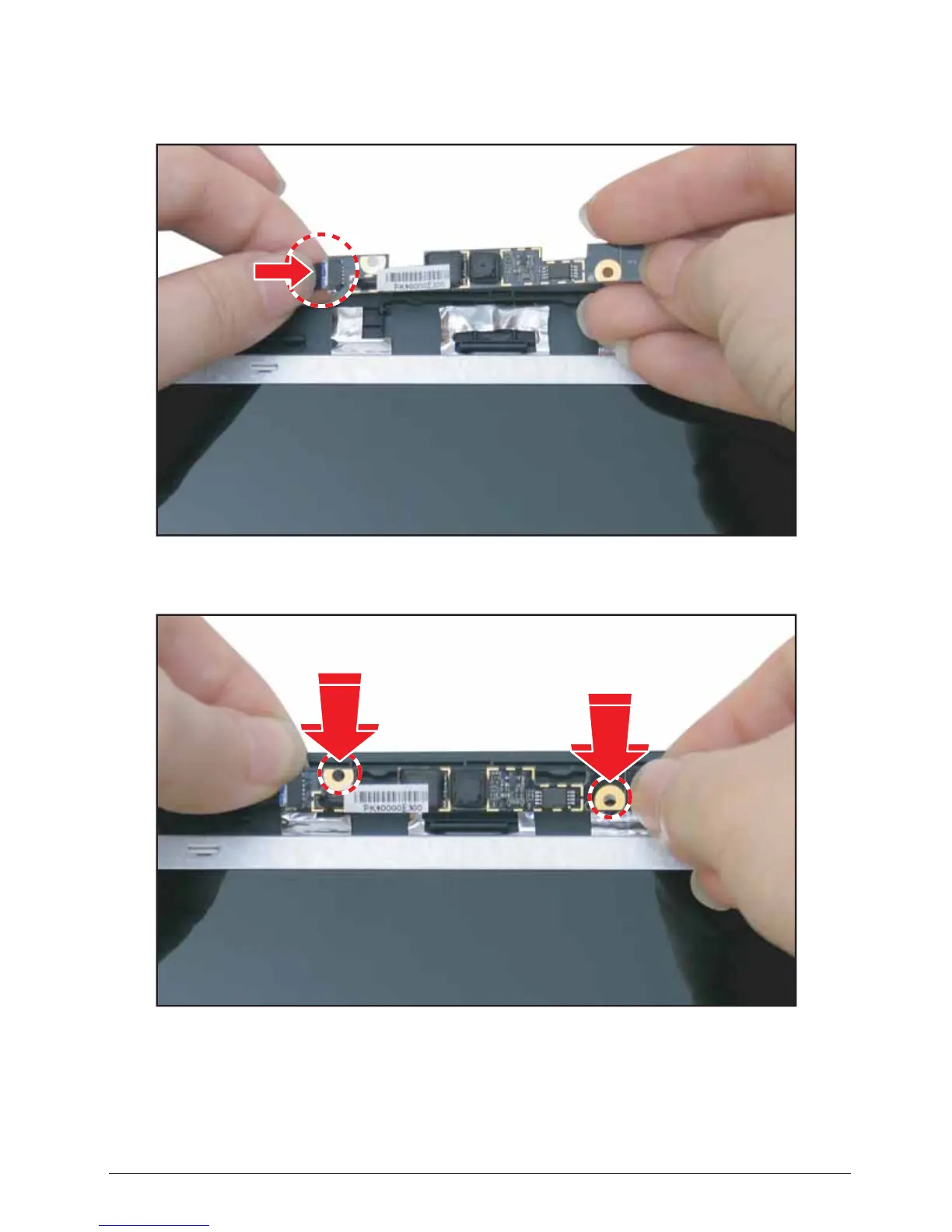

Figure 3:135. Installing the Camera Module (1 of 2)
2. Align and attach the camera module to the slot on the LCD module.
Figure 3:136. Installing the Camera Module (2 of 2)
3. Install the LCD bezel (see LCD Bezel Installation on page 3-86).
