3-84 Service and Maintenance
LCD Bezel Removal
Prerequisite:
î LCD Module Removal on page 3-75

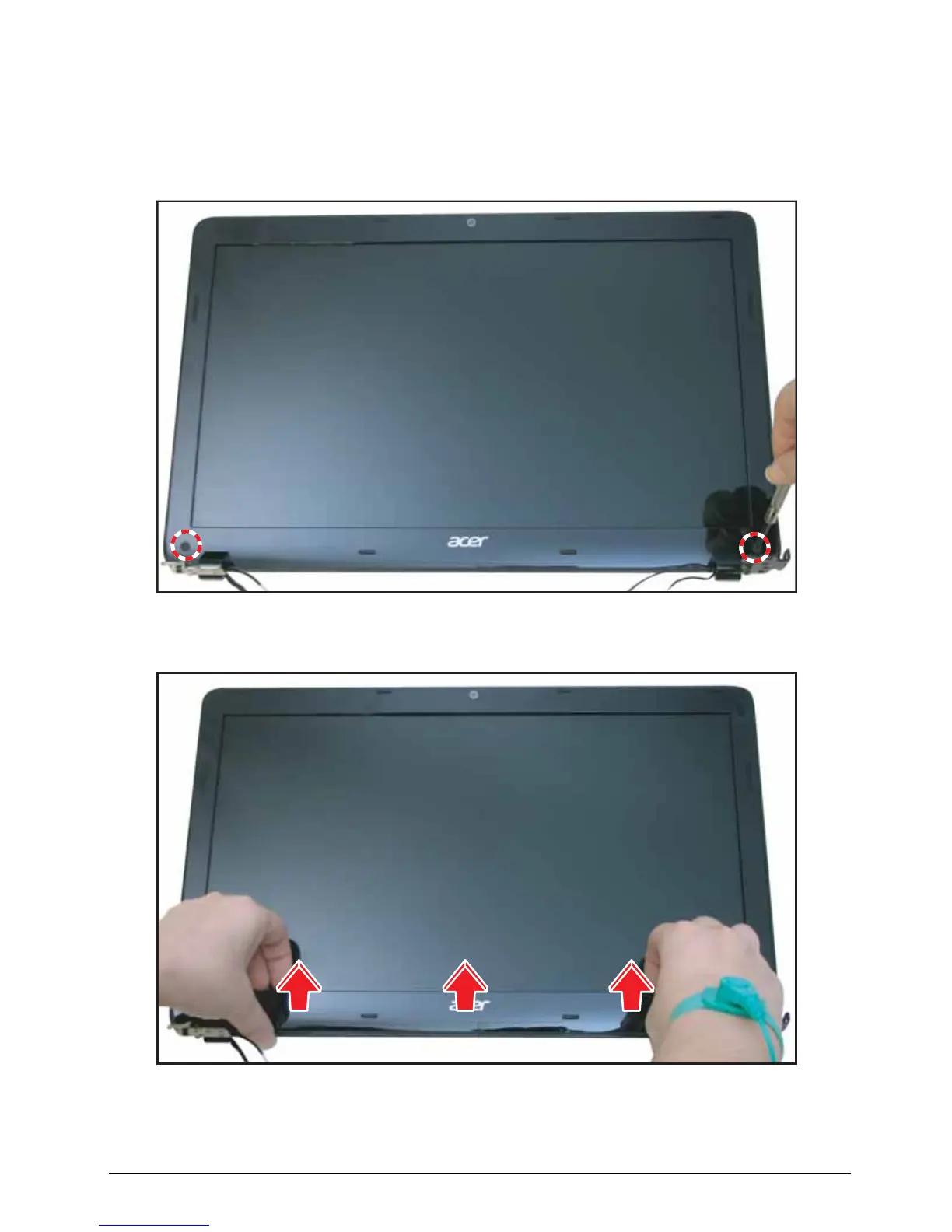

1. Use a screwdriver to crush the mylar covers, and then remove the two (2) screws.
Figure 3:126. Removing the LCD Bezel (1 of 3)
2. From the bottom side, pry inwards to release the latches of the LCD bezel.
Figure 3:127. Removing the LCD Bezel (2 of 3)
To Next Page
