Service and Maintenance 3-65
USB Module Removal
Prerequisite
Upper Case Removal on page 3-34
1. Locate the USB module (see Figure 3:50, page 3-37).
2. Push the connector clips outwards to release the USB module cable connector.

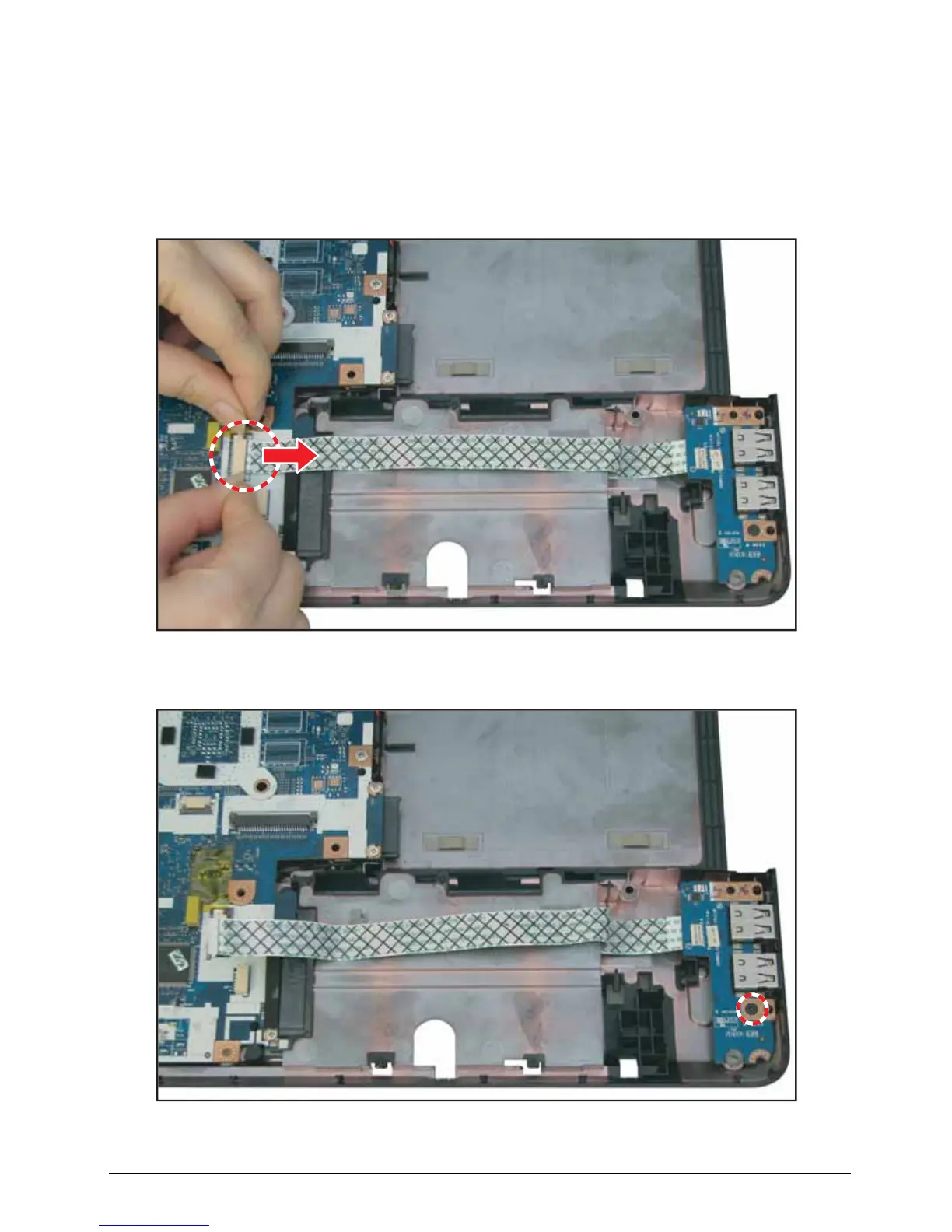

Figure 3:97. Disconnecting the USB Module Cable
3. Remove the screw securing the USB module to the lower case.
Figure 3:98. Removing the USB Module Screw
