Service and Maintenance 3-75
LCD Module Removal
Prerequisite:
Mainboard Removal on page 3-43
Speaker Removal on page 3-59
1. Pull the main antenna cable to pass through the lower case hole (A), detach the adhesive tape,
and remove from the hook guides.

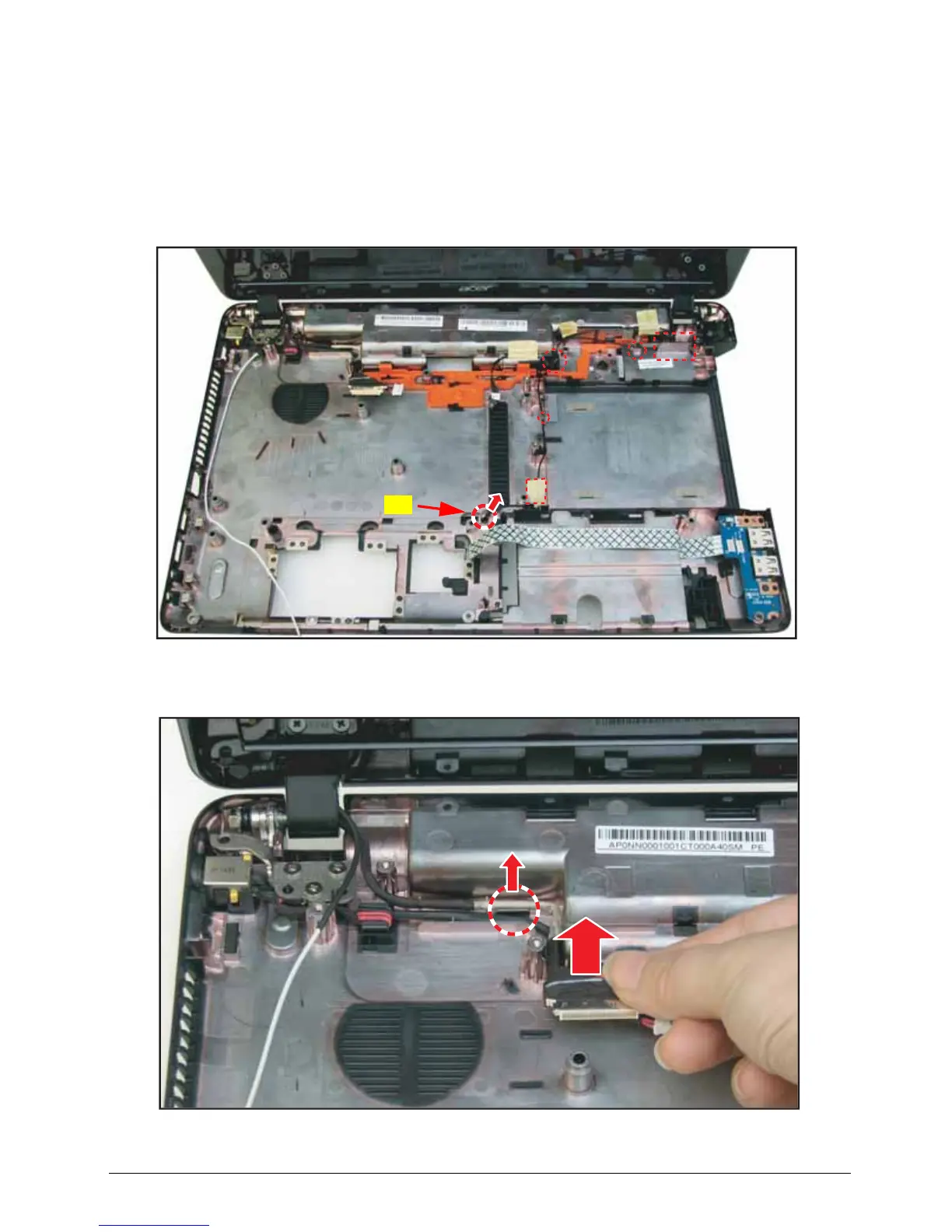

Figure 3:113. Removing the Main Antenna Cable
2. Lift the LVDS cable to release from the guides on the lower case.
Figure 3:114. Removing the LVDS Cable
