Acer Aspire E1-531 - WLAN Module Installation

3-28 Service and Maintenance
WLAN Module Installation

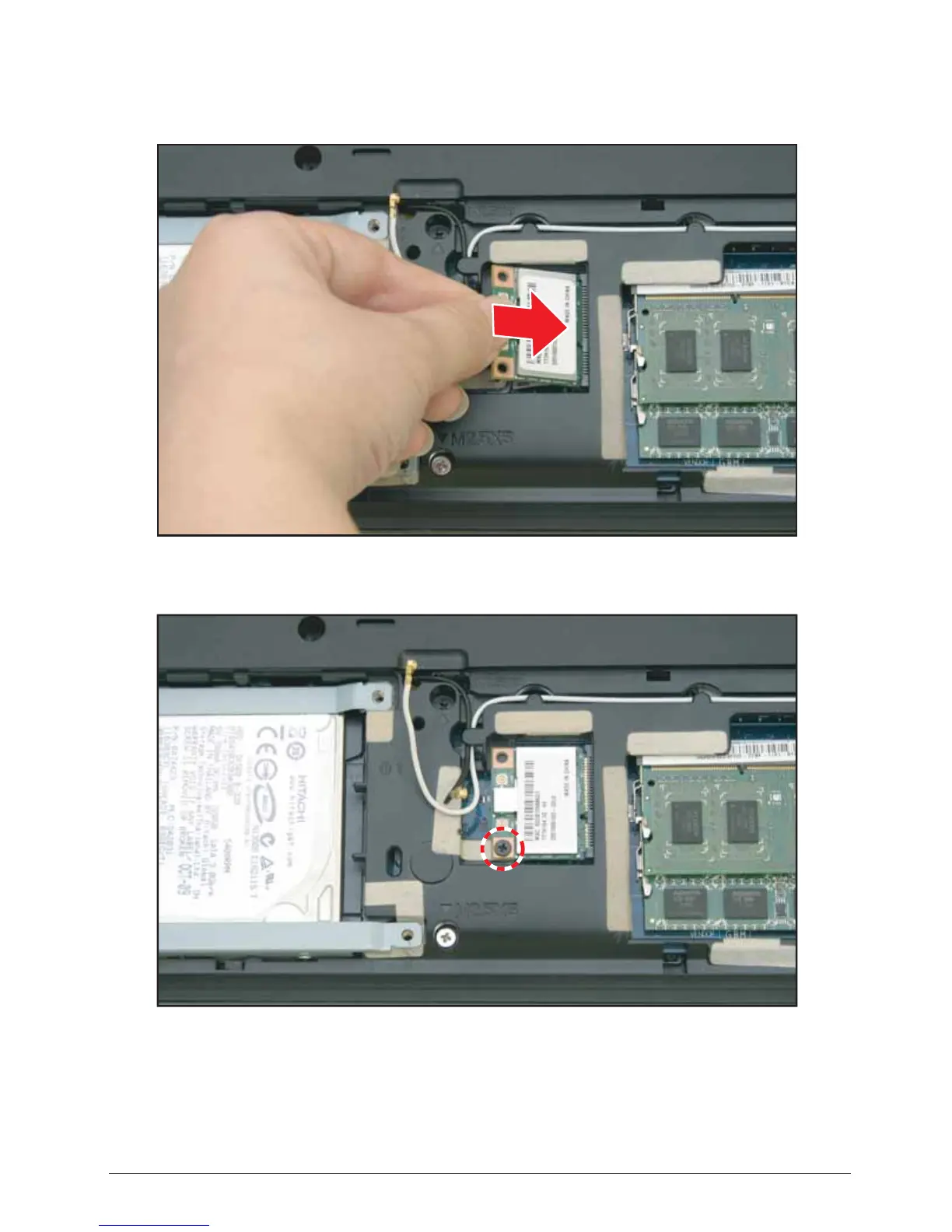

1. Connect the WLAN module to the mainboard connector.
Figure 3:35. Connecting the WLAN Module Connector
2. Attach the screw to secure the WLAN module.
Figure 3:36. Securing the WLAN Module Screw
