3-106 Service and Maintenance
Microphone Module Installation
1. Install the microphone into the slot on the LCD cover.

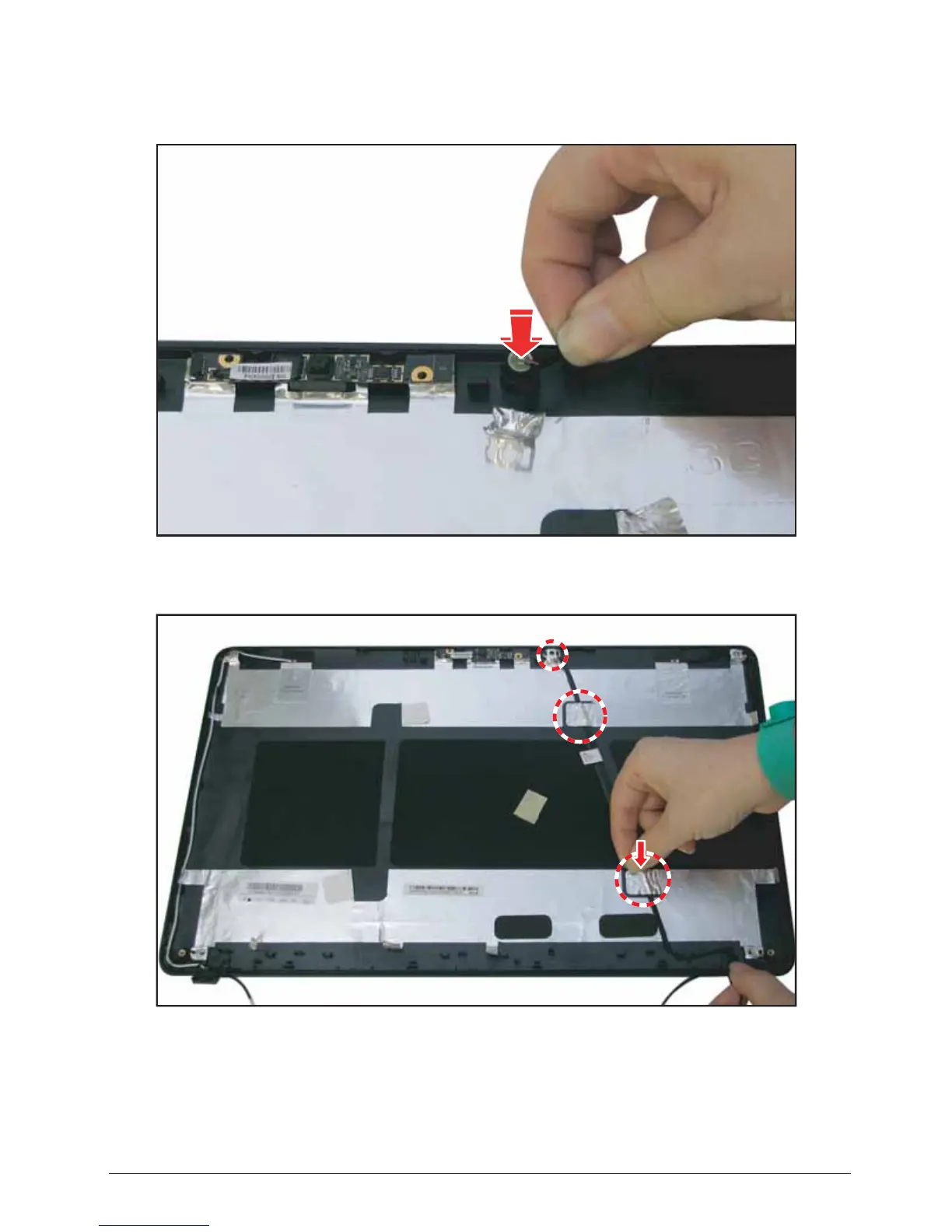

Figure 3:161. Installing the Microphone Module (1 of 2)
2. Attach the metallic tape to secure the microphone cable on the LCD cover.
Figure 3:162. Installing the Microphone Module (2 of 2)
3. Install the LCD panel (see LCD Panel Installation on page 3-95).
