Acer Aspire E1-531 - DC-In Cable Removal

3-82 Service and Maintenance
DC-In Cable Removal
Prerequisite
 LCD Module Removal on page 3-75
1. Lift the DC-in cable jack and the cable adhesive from the lower case.

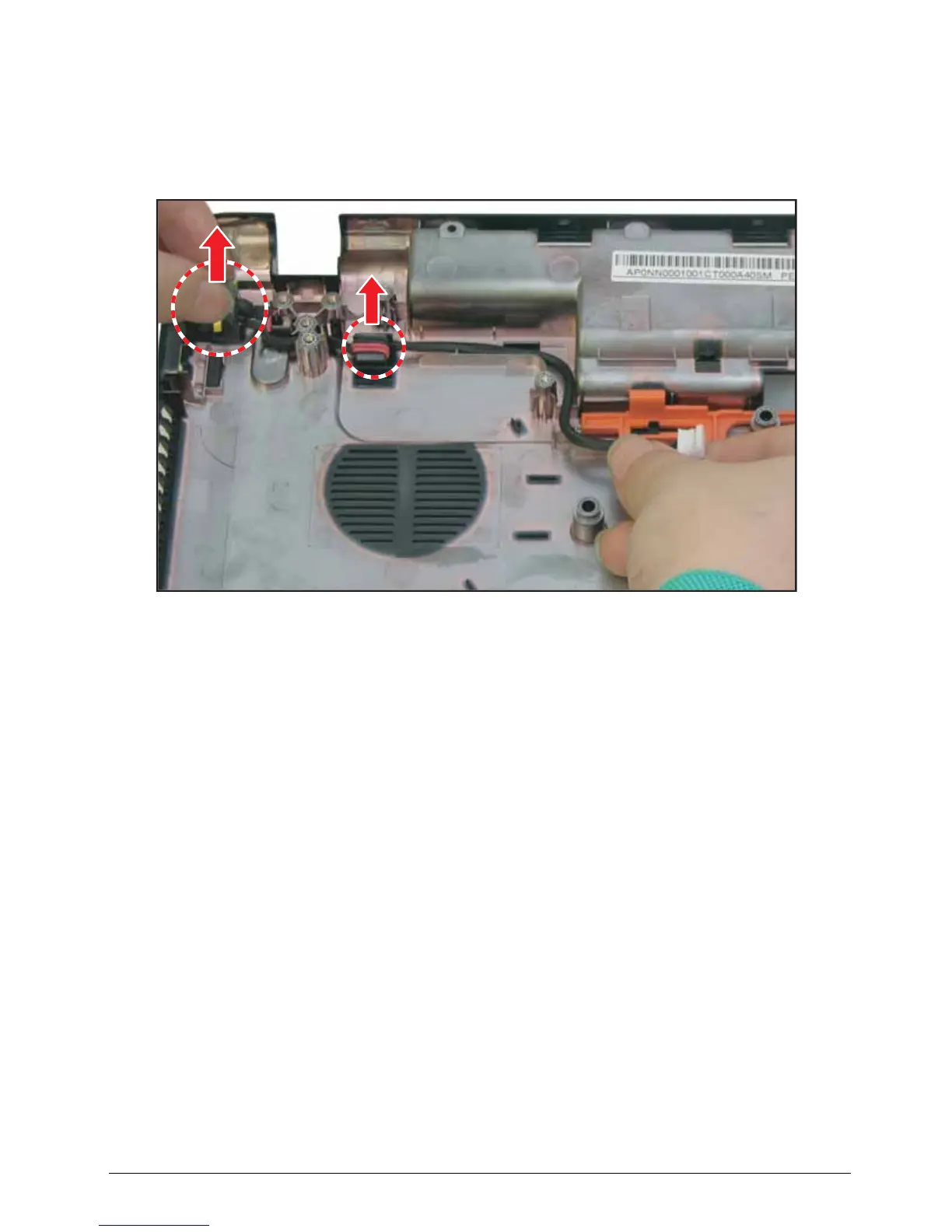

Figure 3:124. Removing the DC-In Cable
2. Remove the DC-in cable completely from the guides on the lower case.
