Service and Maintenance 3-69
Power Board Removal
Prerequisite:
Upper Case Removal on page 3-34
1. Locate the power board on the underside of the upper case.
2. Remove the screw securing the power board to the upper case.

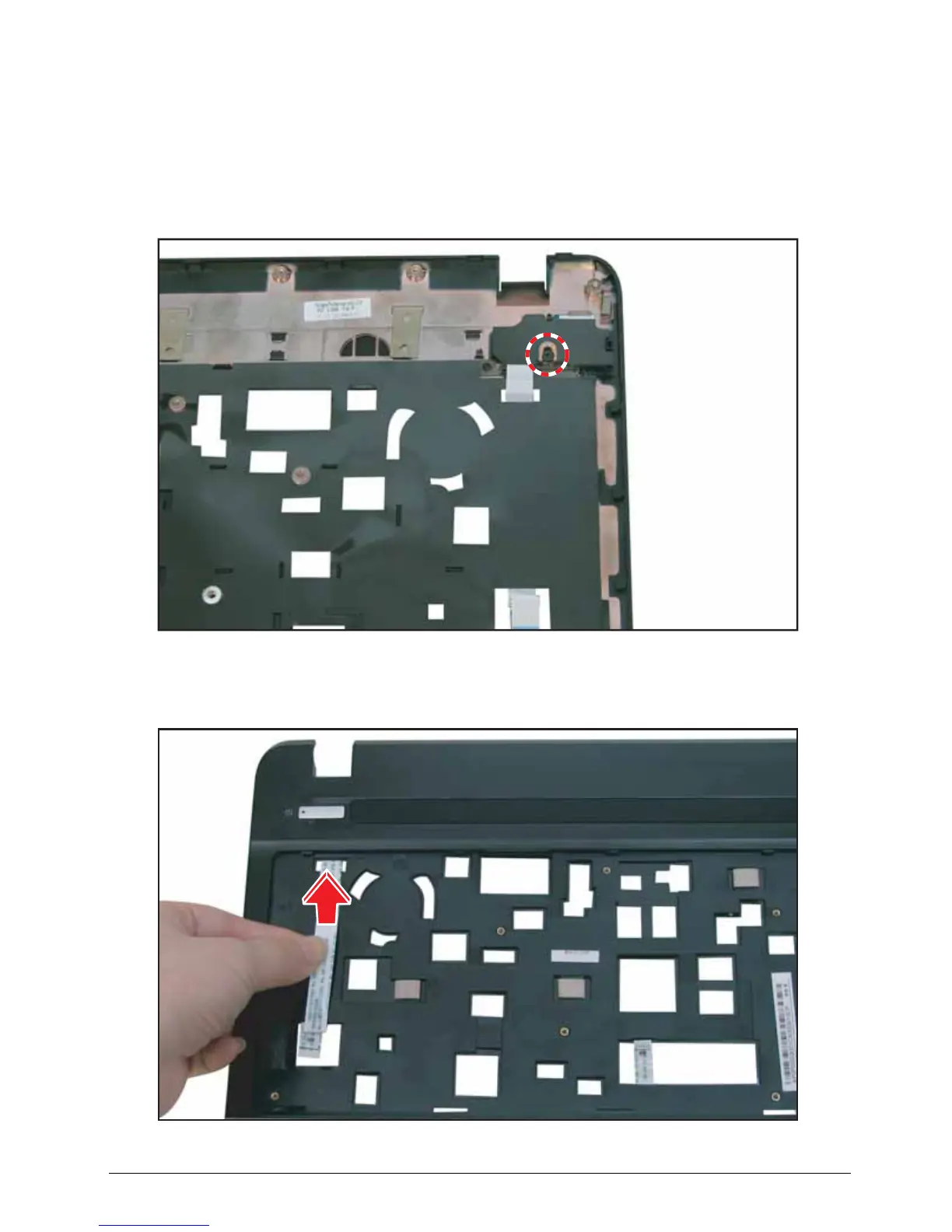

Figure 3:103. Removing the Power Board Screw
3. On the front side of the upper case, lift the power board cable to detach the cable from the
upper case.
Figure 3:104. Detaching the Power Board Cable
