3-26 Service and Maintenance
WLAN Module Removal
Prerequisite:
Base Door Removal on page 3-11
1. Locate the WLAN Module (see Figure 3:10, page 3-12).
2. Disconnect the main (A, black) and auxiliary (B, white) antenna cables from the WLAN module
connectors.

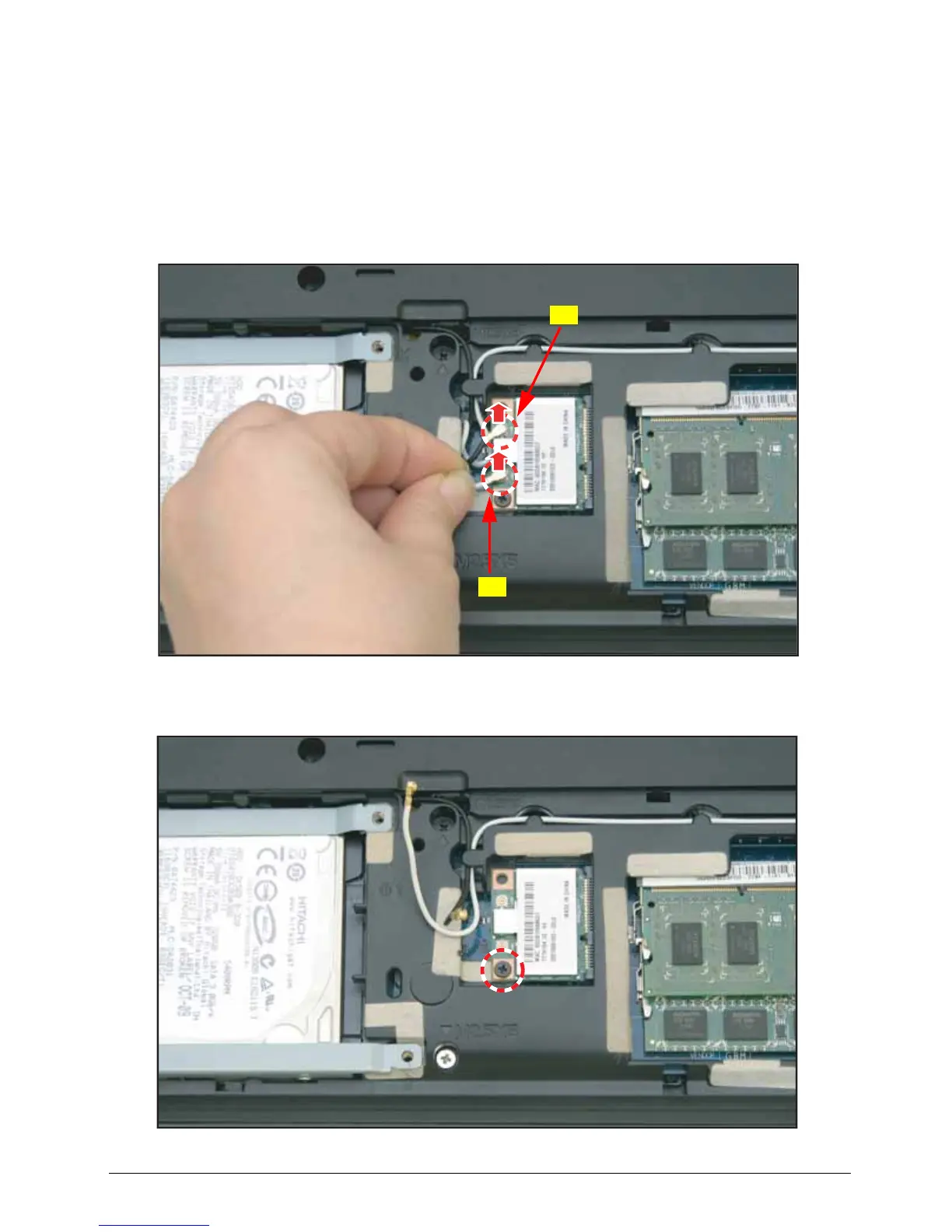

Figure 3:32. Disconnecting the Antenna Cables
3. Remove the screw from the WLAN module.
Figure 3:33. Removing the WLAN Module Screw
