Acer Aspire E1-531 - Mainboard Installation

3-46 Service and Maintenance
Mainboard Installation

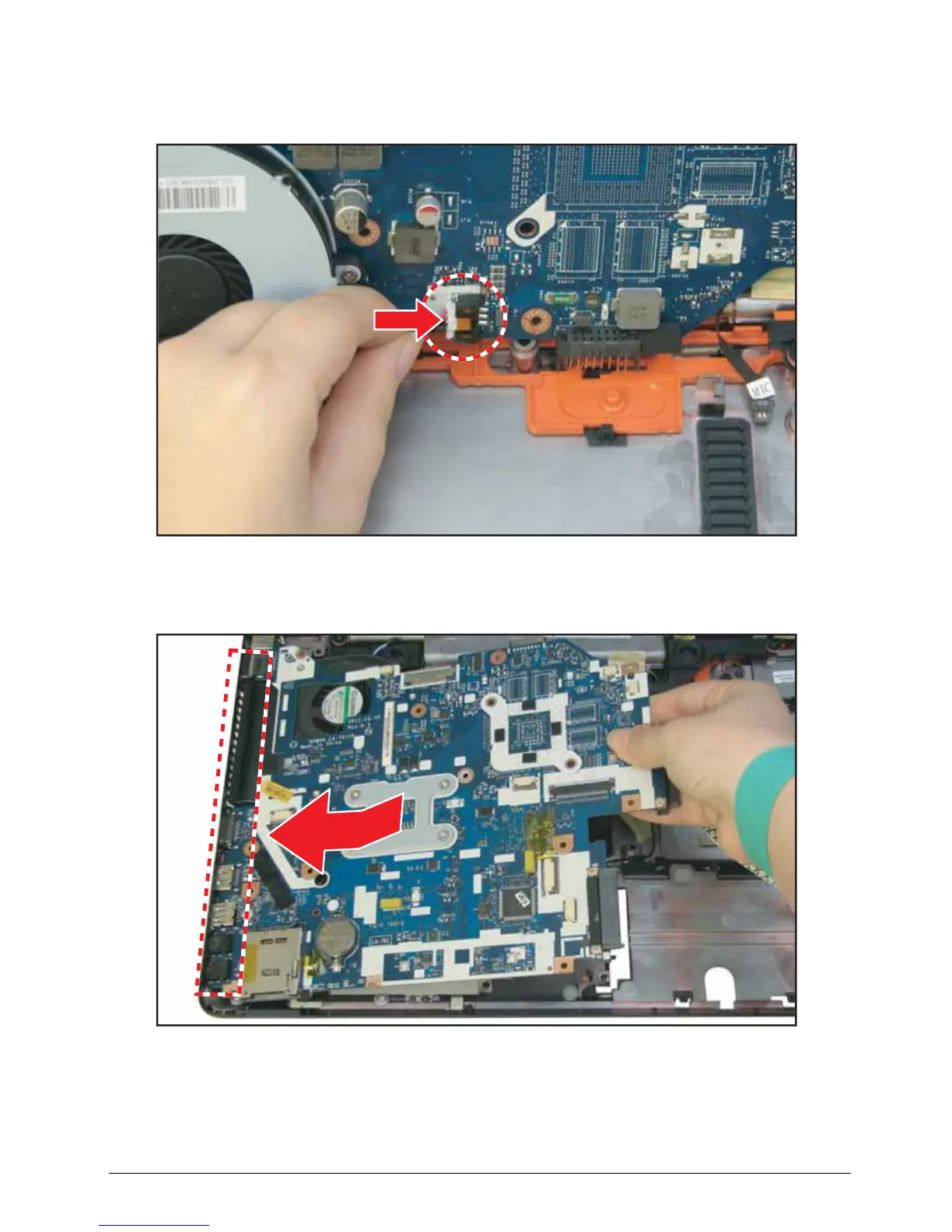

1. Connect the DC-in cable connector to the mainboard connector.
Figure 3:65. Connecting the DC-In Cable
2. Align the left side connectors of the mainboard to the slots on the lower case, and then push to
install the mainboard.
Figure 3:66. Installing the Mainboard
