6. Pull the mainboard by the right side to release the connectors from the slots on the lower case.

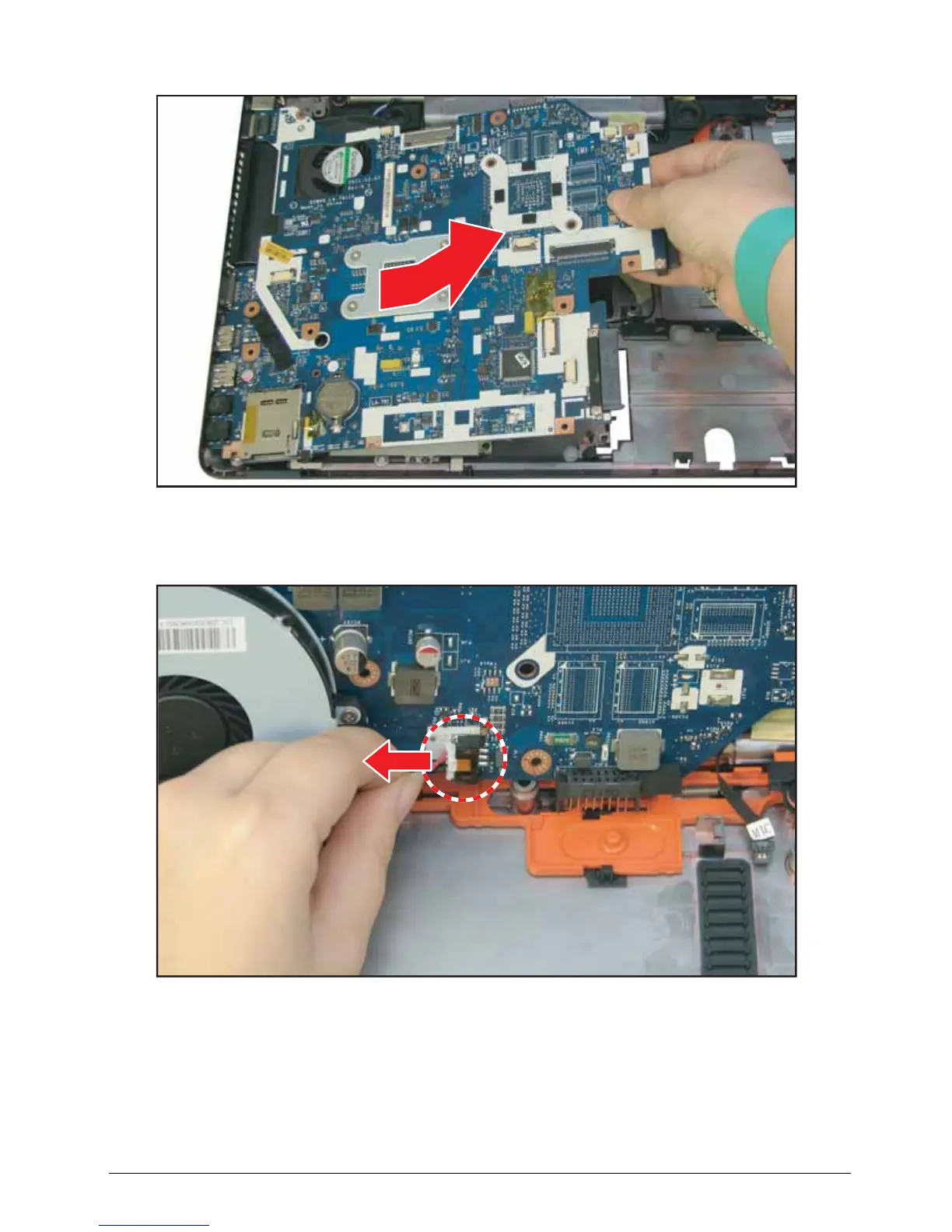

Figure 3:63. Removing the Mainboard
7. On the underside of the mainboard, disconnect the DC-in cable connector from the mainboard
connector.
Figure 3:64. Disconnecting the DC-In Cable
