3-44 Service and Maintenance

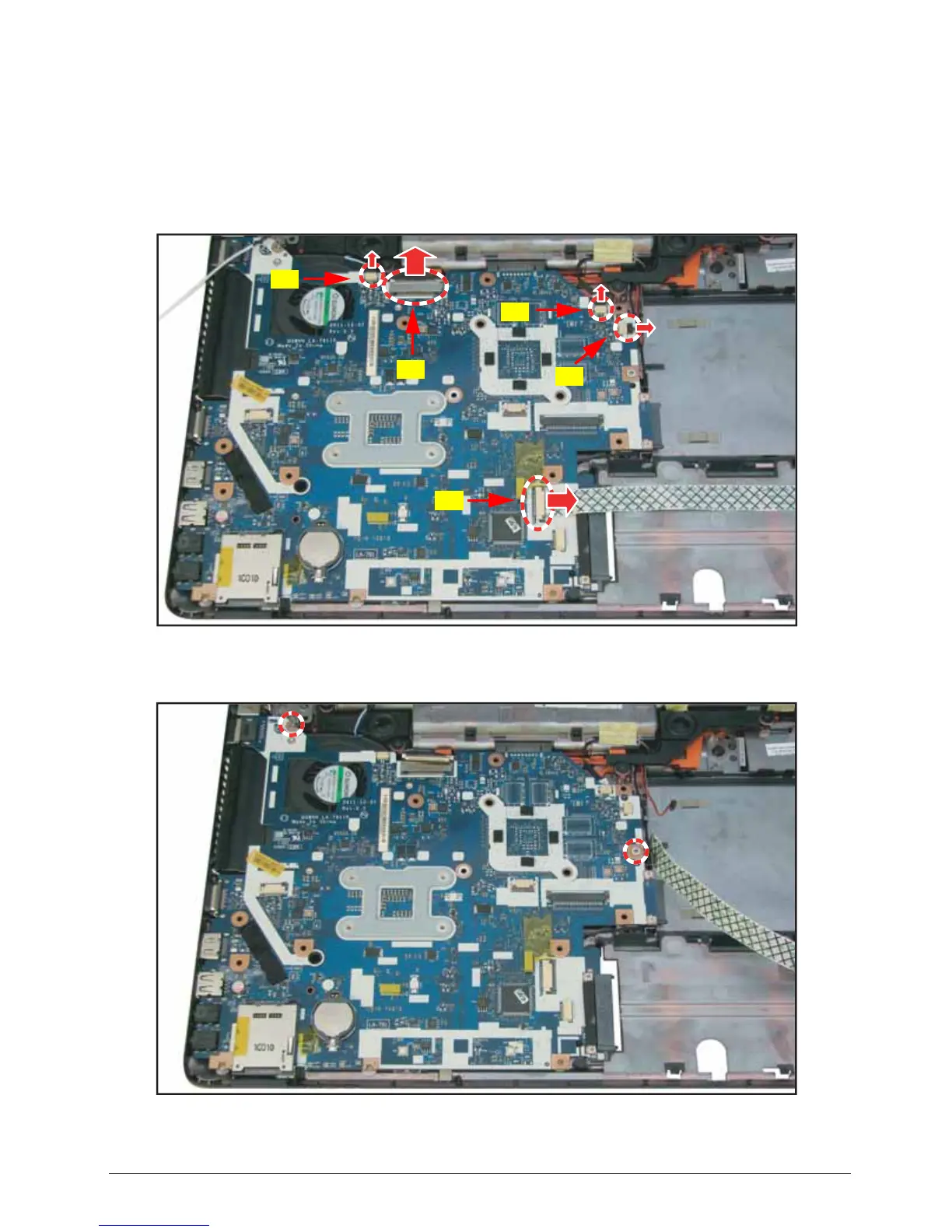

4. Disconnect the following from the mainboard connectors:
• Left speaker cable connector (A)
• LVDS cable connector (B)
• Microphone cable connector (C)
• Right speaker cable connector (D)
• USB module cable connector (E)
Figure 3:61. Disconnecting the Cable Connectors
5. Remove the two (2) screws securing the mainboard to the lower case.
Figure 3:62. Removing the Mainboard Screws
To Next Page
