CCD Module Removal
Prerequisite:
LCD Bezel Removal on page 3-84
1. Disconnect the camera cable connector from the camera module.

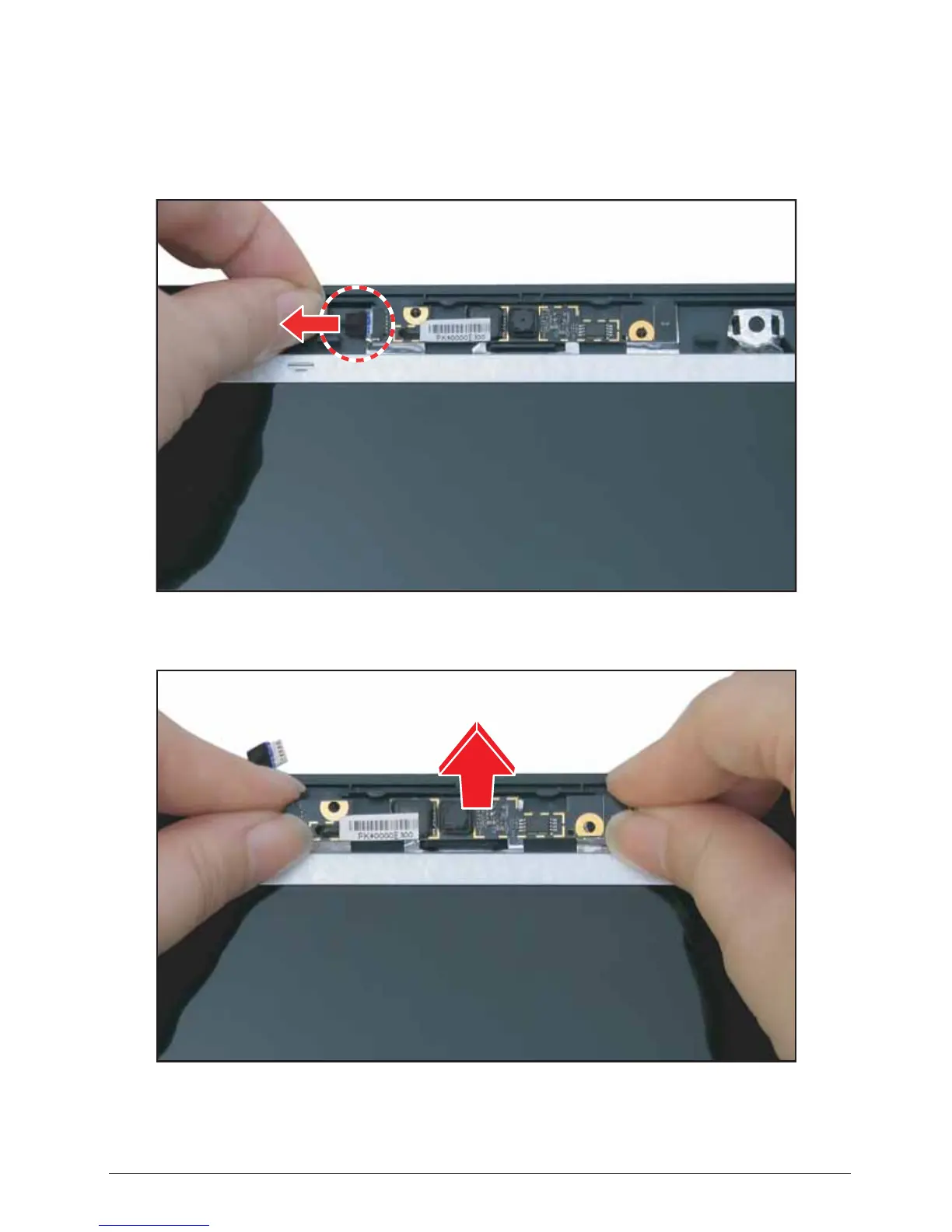

Figure 3:133. Removing the Camera Module (1 of 2)
2. Lift to remove the camera module.
Figure 3:134. Removing the Camera Module (2 of 2)
