Service and Maintenance 3-87

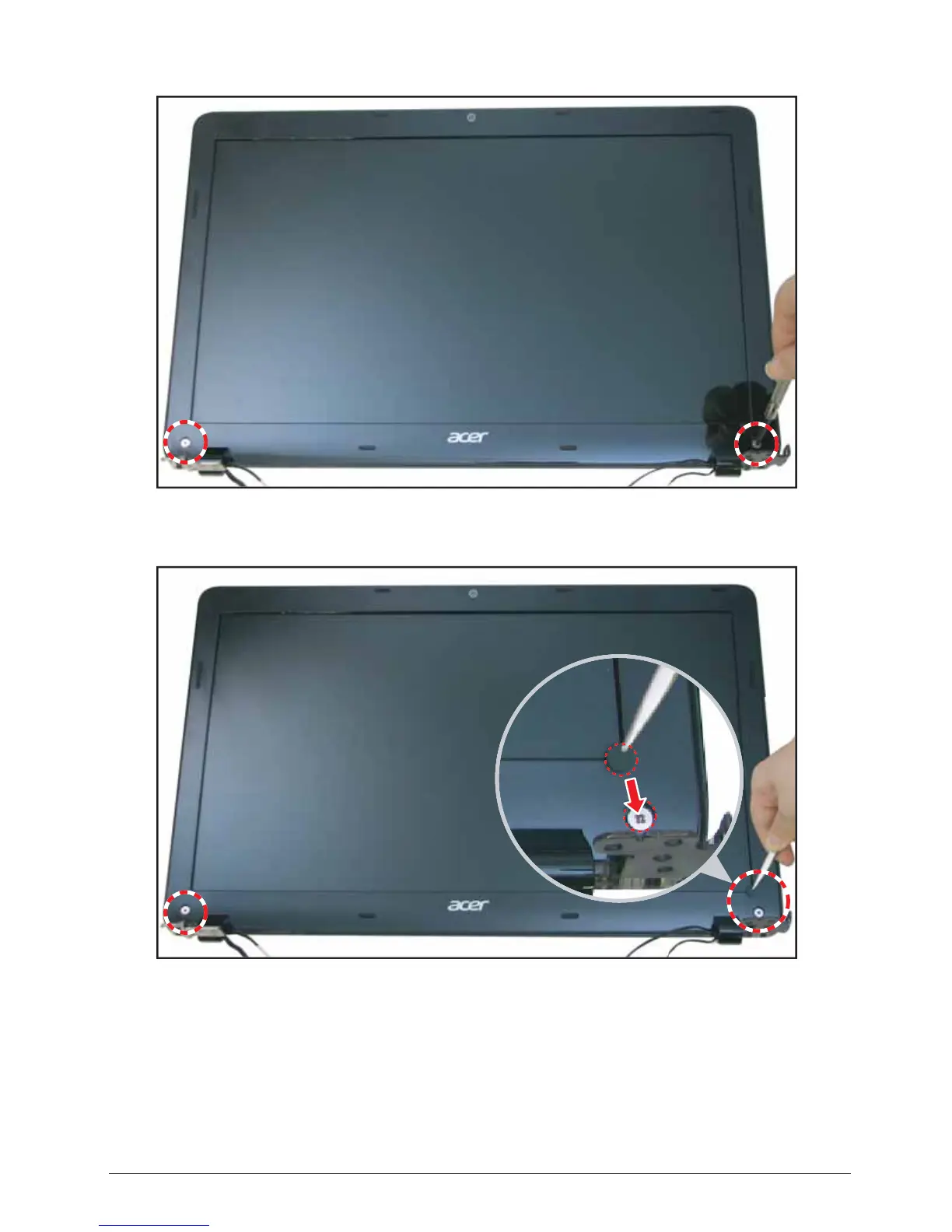

3. Attach the two (2) screws to secure the LCD bezel to the LCD module.
Figure 3:131. Installing the LCD Bezel (3 of 4)
4. Attach new adhesive mylars to cover the two (2) screws.
Figure 3:132. Installing the LCD Bezel (4 of 4)
5. Install the LCD module (see LCD Module Installation on page 3-78).
