System Overview
Purpose of the Touchscreen
e console touchscreen is the main user interface for the ACIST RXi System
and provides the following functionality:
• guides the user in system operation
• zeros the aortic pressure signal
• equalizes the RXi pressure sensor and aortic pressure signals
• adjusts the Pv value
• displays the mean Pa, Pd, Pd/Pa, and FFR values
• identies the vessel
• shows the last three FFR recorded values
• enables access to system settings via a main menu
• enables viewing the case information
• calibrates the RXi Pa signal to the hospital’s hemodynamic system
signal

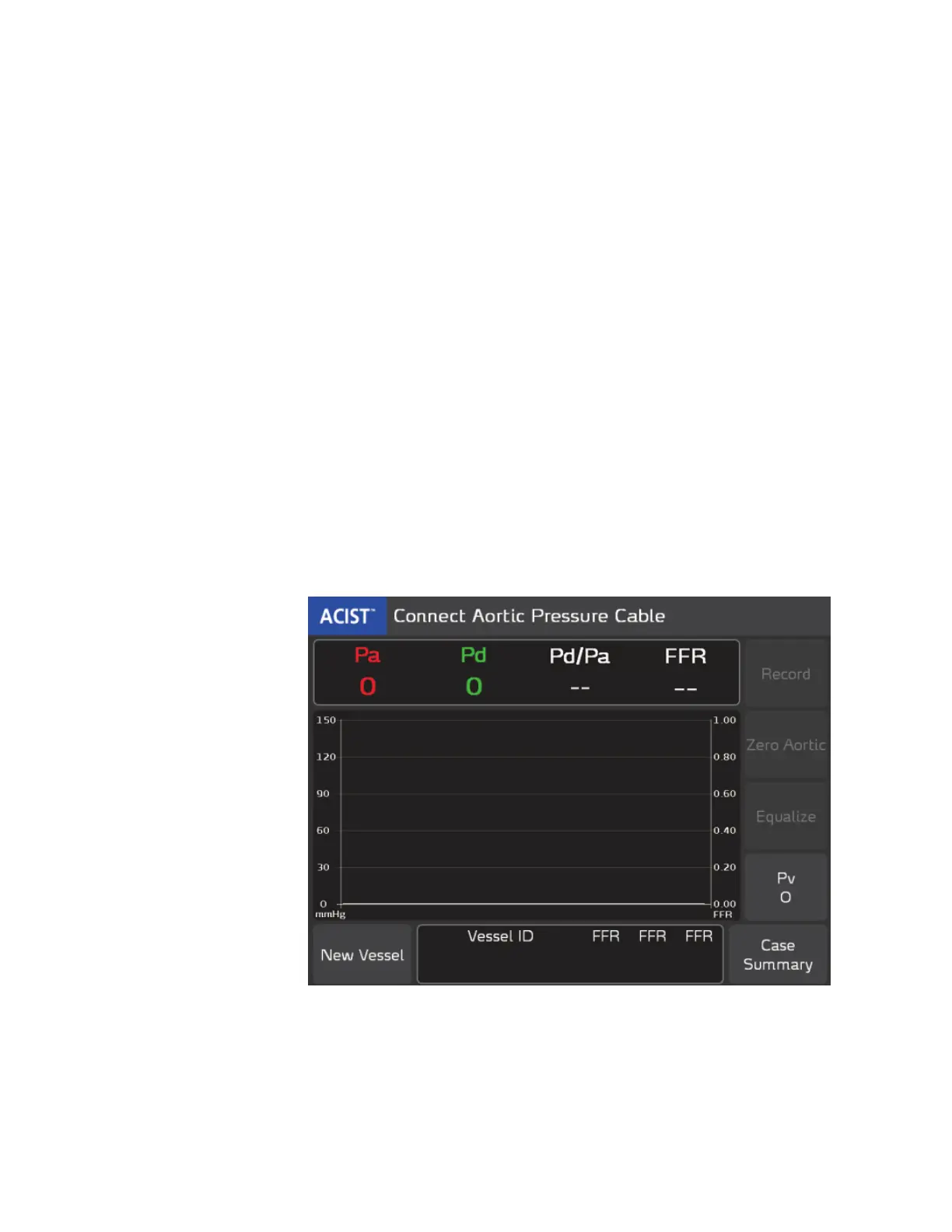

e following example of the console touchscreen shows the user interface
upon initial startup.
