Installation Procedures
24 | ACIST RXi System User’s Guide 901700-001,01 2019-09 English
Installation
Note
This task of connecting the aortic pressure cable typically needs to be done only at
installation or when connecting to a new hemodynamic monitor. You must verify that
the aortic pressure zero is correct for each new patient case.

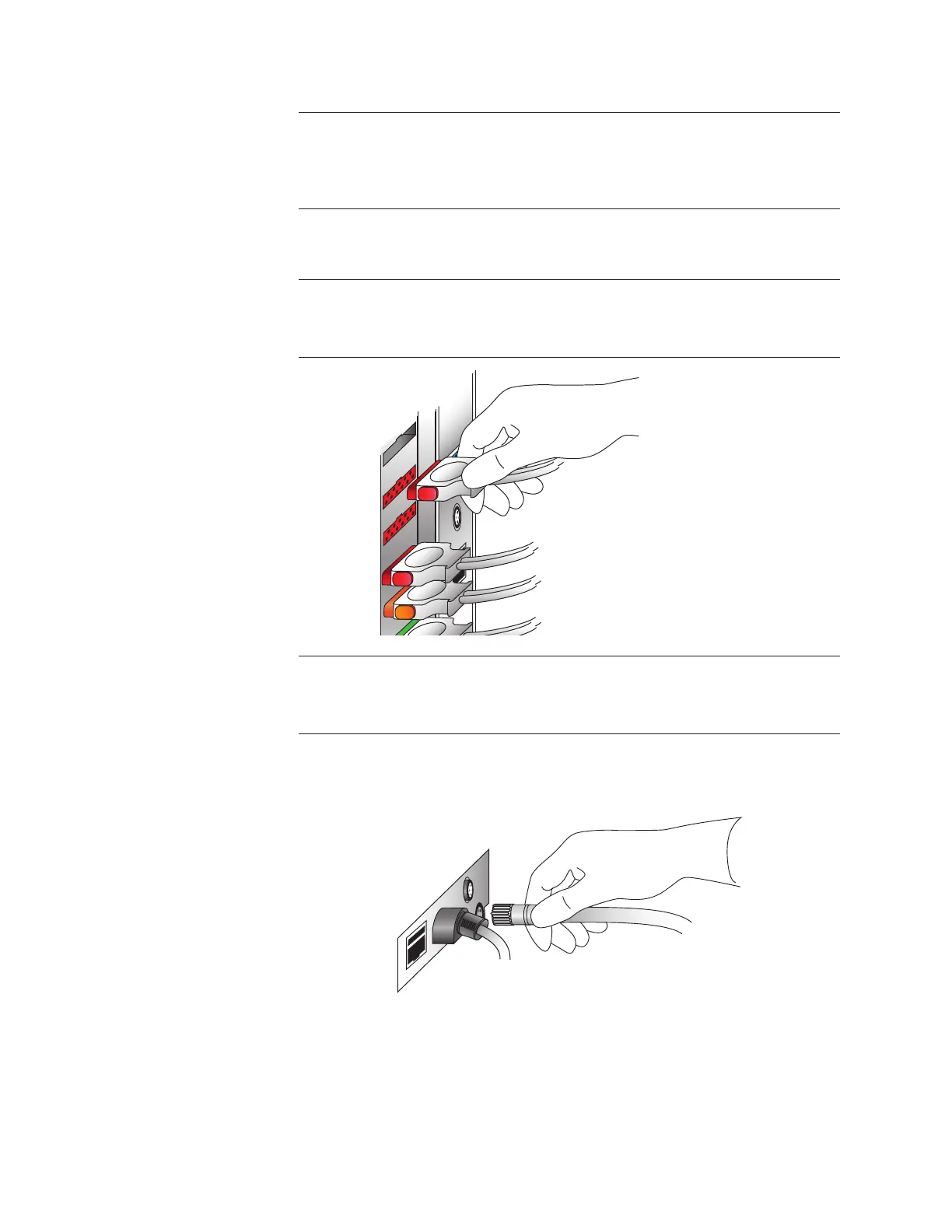

5. Optional: You may connect the RXi pressure output cable to an available
pressure input on the hemodynamic system.
Note
This connection is not required, but it allows you to view and record the pressure waves
on the hemodynamic system.
The hospital’s system may be
dierent than the one shown
here.
Note
Ensure that you have the correct pressure output cable for the hospital’s hemodynamic
system.
6. Connect the other end of the RXi pressure output cable to the ACIST RXi
System, as shown below:
To Next Page
