2.2 The Live View Screen

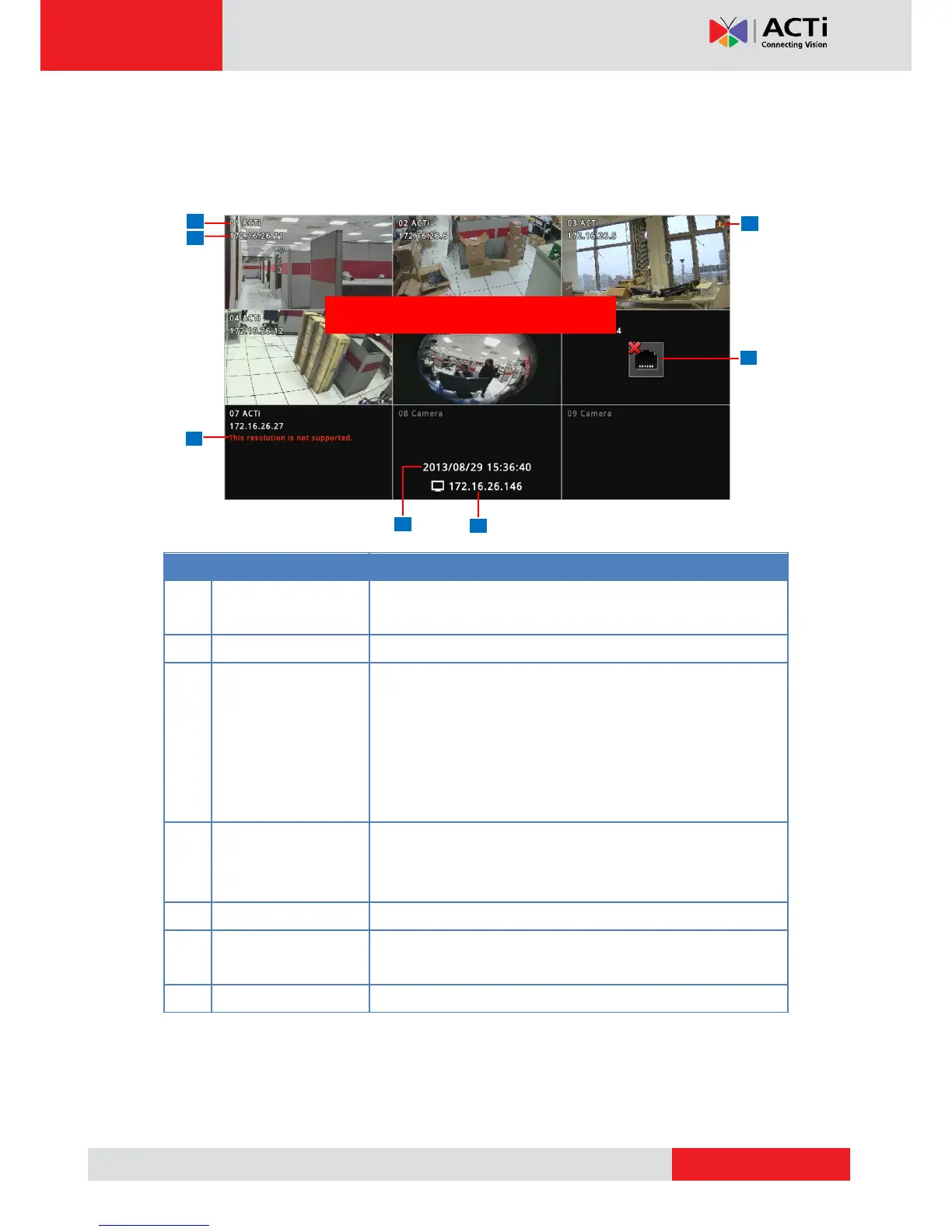

Different types of information are displayed on the Live View screen.
Item
Description
1
Channel Number and
Name
Displays the channel number and camera name.
2
Channel IP Address
Displays the IP address of the camera.
3
Warning Message
Displays the warning message:
 This resolution is not supported: Local display supports
camera resolution of up to 1920 x 1080 only. If the
resolution exceeds this value, this message is displayed.
 The compression is not supported: Local display
supports H.264 compression only.
4
Event Trigger Icon
Indicates an event has happened, such as motion is detected
or a digital input is triggered. These triggers are based on the
events configured on the camera side.
5
Connection Error
Indicates the camera is disconnected from the network.
6
System Date and
Time
The system date and time.
7
Decoder IP Address
The IP address of the Decoder.
2
3
Live view display area
