Changing the Layout
By default, the local Live View is displayed with a 9-channel layout. The layout can be
changed into a 1-channel, 2-channel, 1+7-channel display, etc. Available layout varies
depending on current channel mode (see Module on page 44).

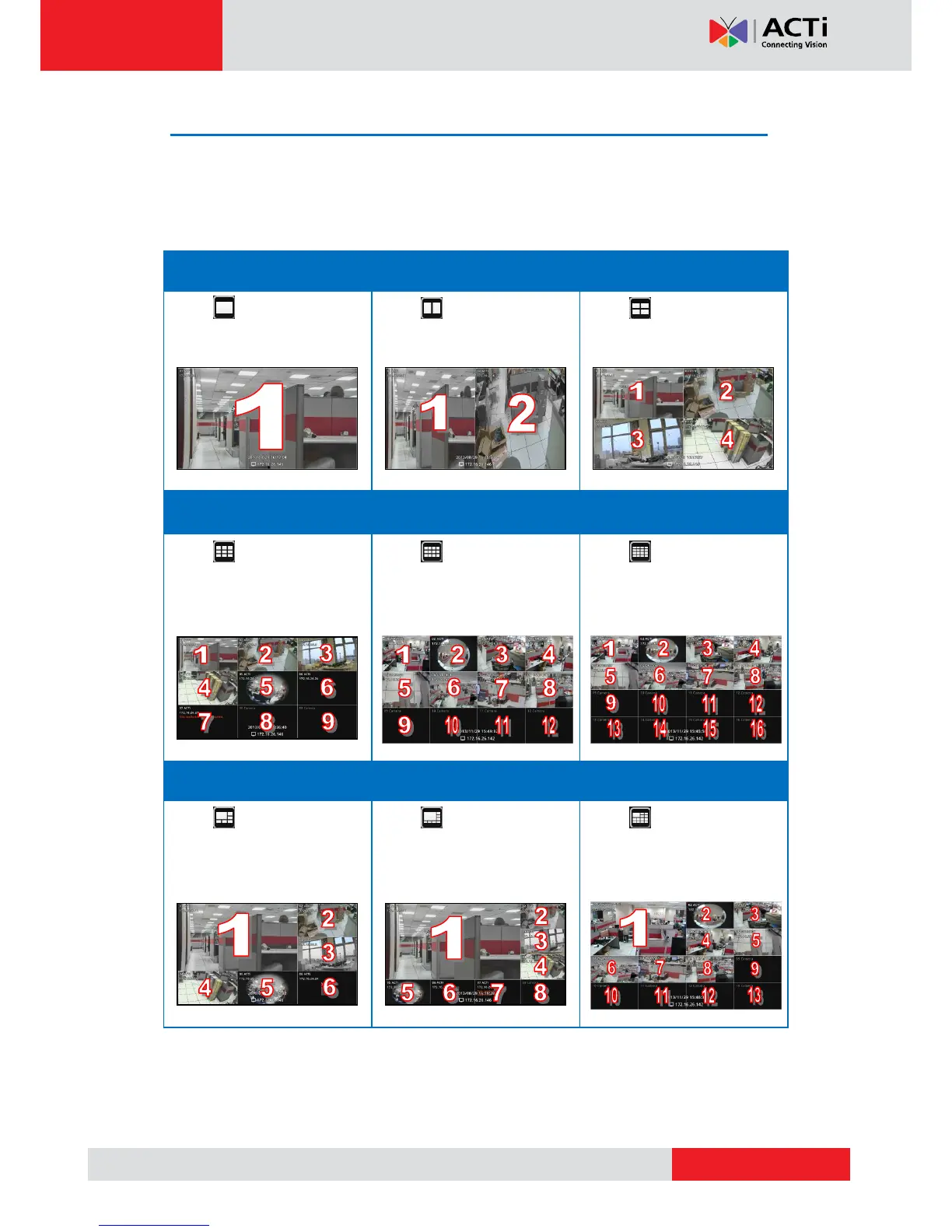

Layout 1
Layout 2
Layout 4
Click to display one
channel on full screen.
Click to display 2
channels at a time.
Click to display 4
channels at a time.
Layout 9
Layout 12
Layout 16
Click to display 9
channels at a time.
Click to display 12
channels at a time.
Click to display 16
channels at a time.
Layout 1+5
Layout 1+7
Layout 1+12
Click to display 6
channels at a time on a 1+5
layout.
Click to display 8
channels at a time on a 1+7
layout.
Click to display 13
channels at a time on a 1+12
layout.
