ADC AD-320 - Page 68

8American Dryer Corporation450239-4

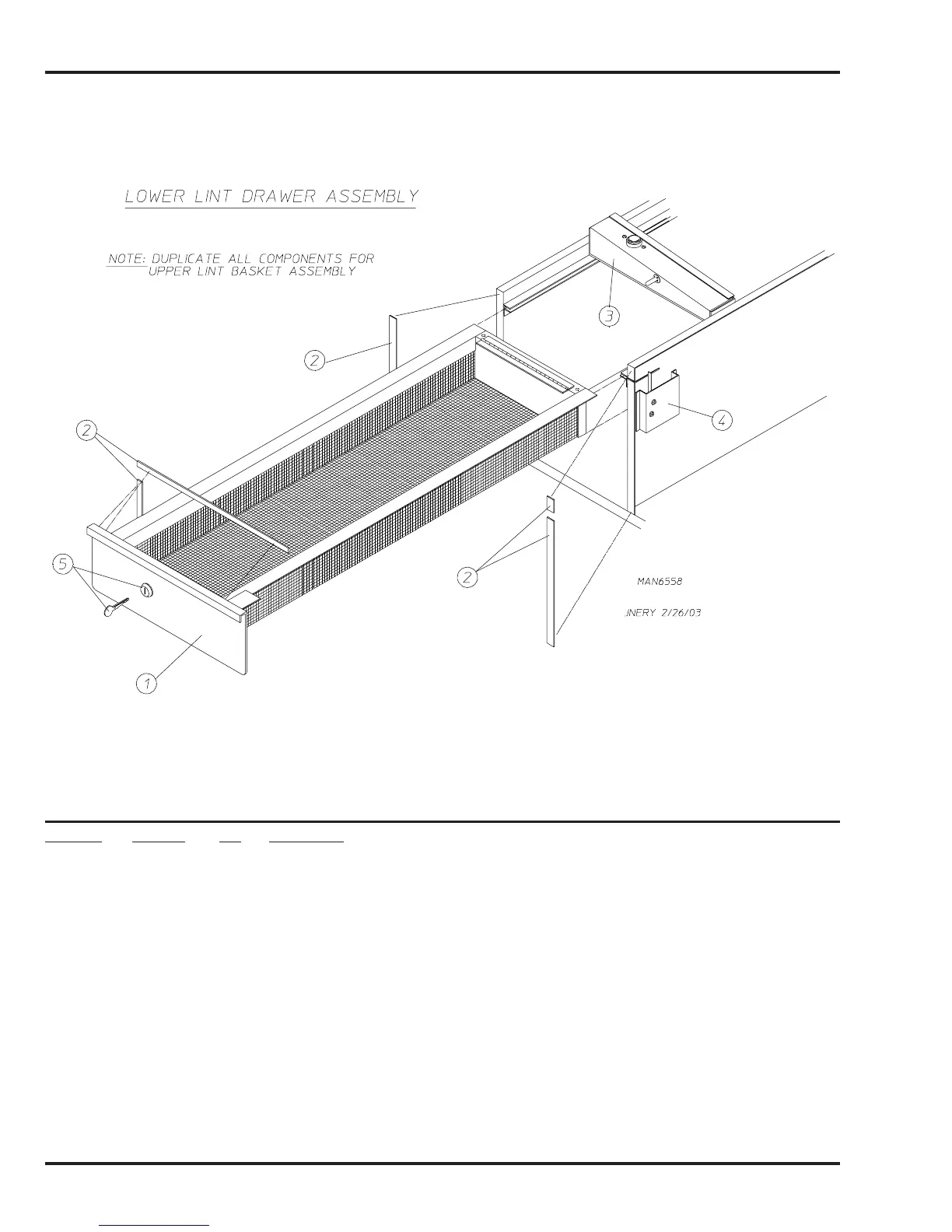

AD-320 Locking Lint Drawer (Basket) Assembly
Illus. No. Part No. Qty. Description
18834591AD-320 White Locking Lint Drawer (basket) Assembly Complete Less Lock
(includes illus. nos. 1 and 2)
883460 1 AD-320 Ivory Locking Lint Drawer (basket) Assembly Complete Less Lock
(includes illus. nos. 1 and 2)
883461 1 AD-320 Coral Blue Locking Lint Drawer (basket) Assembly Complete Less Lock
(includes illus. nos. 1 and 2)
883462 1 AD-320 Black Locking Lint Drawer (basket) Assembly Complete Less Lock
for Stainless Steel Models ONLY
21176043Neoprene Sponge Tape (sold by the foot)
3––––––1Temperature Sensor Bracket
(refer to Temperature Sensor Probe Assembly on page 21)
4––––––1Lint Drawer (basket) Switch
(refer to AD-330 / AD-320 Lint Drawer [Basket] Switch Assembly on page 23)
51600381Lint Drawer Lock Assembly (keyed to number XX4451)
160140 1 Key ONLY (key number XX4451)
160034 1 Cam ONLY
