Optional Gas Piping and Exhaust Ducting Kits

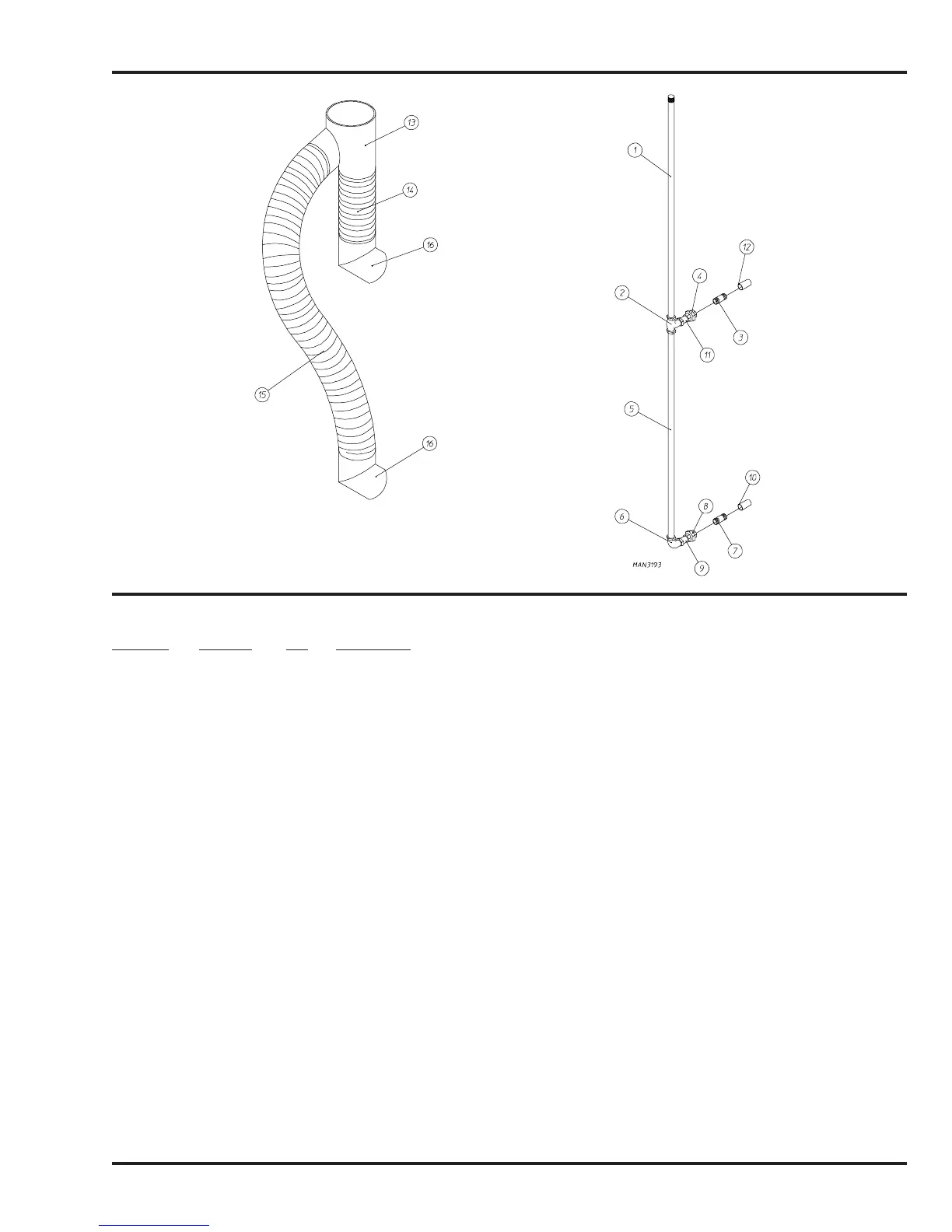

ADG-330 / ADG-320 Optional Gas Piping Kit
Illus. No. Part No. Qty. Description
—8801281ADG-330 / ADG-320 Gas Piping Kit
(includes illus. nos. 1 through 12)
114282113/4” x 36” Pipe
214250513/4” x 1/2” x 1/2” Tee
314281411/2” x 2-1/2” Nipple
414260011/2” Union
514282411/2” x 37-1/4” Pipe
614250011/2” x 90° Elbow
714281411/2” x 2-1/2” Nipple
814260011/2” Union
914270011/2” Close Nipple
10 143001 1 1/2” Coupling
11 142700 1 1/2” Close Nipple
12 143001 1 1/2” Coupling
ADG-330 / ADG-320 Optional Exhaust Ducting Kit
—8820351AD-330 / AD-320 Exhaust Ducting Kit
(includes illus. nos. 13 through 16)
13 143600 1 10” x 6” x 6” Wye Branch Duct
14 143519 1 6” Round x 4’ Long Flexible Exhaust Duct
15 143509 1 6” Round x 8’ Long Flexible Exhaust Duct
16 143536 2 6” Round x 45° Elbow
—150300* 12 #10-16 x 1/2” Hex Washer TEK Screw
—117505* 12 Aluminum Duct Tape (sold by the foot)
*Included with Exhaust Ducting Kit (ADC Part No. 882035).
