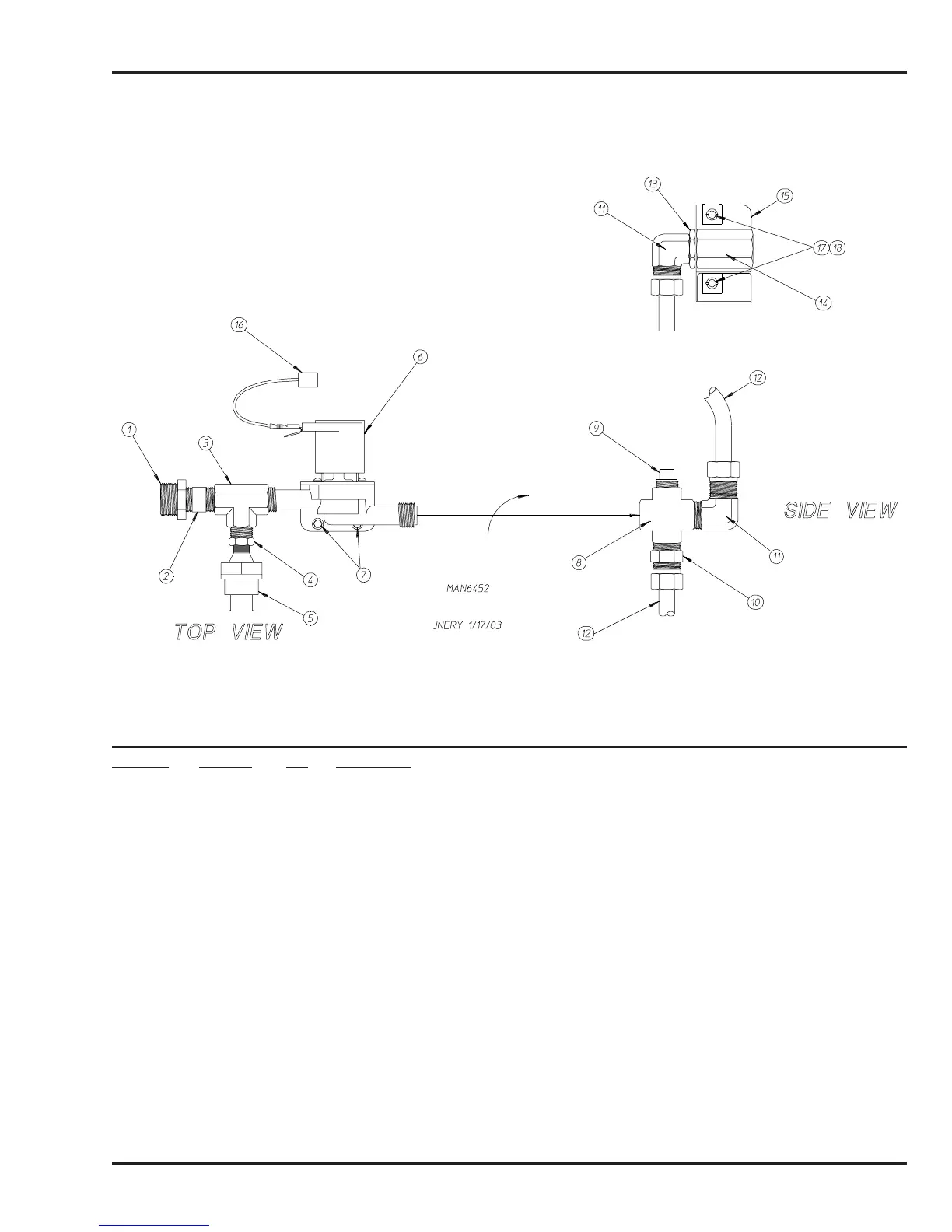

S.A.F.E. Solenoid Assembly
Illus. No. Part No. Qty. Description
114288811/2” M.P.T. x 3/8” F.P.T. Hex Bushing
214324113/8” Close Brass Nipple
314322013/8” F.P.T. Brass Tee
414331513/8” M.P.T. x 1/8” F.P.T. Brass Bushing
51369871Pressure Switch
61651141Sensor Activated Fire Extinguishing System Solenoid Valve 24V 50/60 Hz
71503092#10-16 x 1/2” Hex Head TEK Crimptite Screw
814323613/8” Brass Cross
914325113/8” M.P.T. Brass Plug
10 143208 1 3/8” Comp x 3/8” M.P.T. Brass Connector
11 143320 3 3/8” Comp x 3/8” M.P.T. Brass Elbow
12 143099 4’ 3/8” OD x 0.035 Wall Copper Tubing
13 143303 2 3/8” N.P.T. Brass Lock Nut
14 143585 2 3 GPM 3/8” F.P.T. 60° Spray Nozzle
15 311591 2 Sprinkler Head Mounting Bracket
16 824081 1 RC Network Assembly
17 154001 4 #10-24 Speed Nut
18 150207 4 #10-24 x 1/2” Phillips Pan Head Machine Screw
—8476161Sensor Activated Fire Extinguishing System Piping Assembly Complete
(includes illus. nos. 1 through 18)
