18 American Dryer Corporation 450239-4

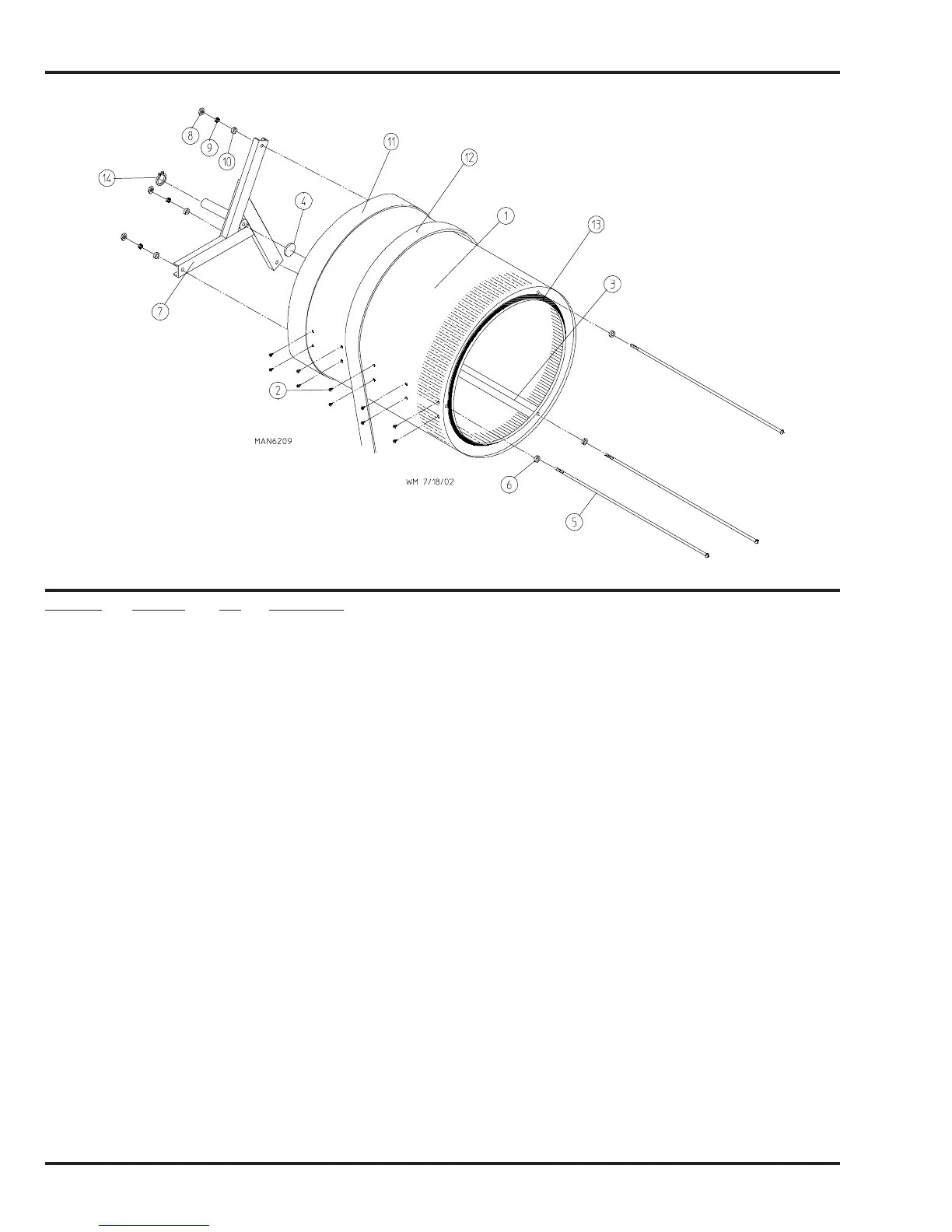

AD-330 Tumbler / Support Assemblies
Illus. No. Part No. Qty. Description
18007631Tumbler and Support Assembly Complete with Felt Collars
(includes illus. nos. 1 through 11, 13, and 14)
800765 1 Stainless Steel Tumbler and Support Assembly Complete with Felt Collars
(includes illus. nos. 1 through 11, 13, and 14)
800722* 1Tumbler ONLY without Felt Collars
(includes illus. nos. 1 through 3)
800740* 1Stainless Steel Tumbler ONLY without Felt Collars
(includes illus. nos. 1 through 3)
215031330#10-16 x 1/2” TORX PLUS
®
BTN Head Screw
33013152Short Tumbler Rib ONLY
301316 1 Tall Tumbler Rib ONLY
301433 2 Stainless Steel Short Tumbler Rib
301434 1 Stainless Steel Tall Tumbler Rib
411598611/4” x 2” Tumbler Felt Pad
58820503Tie Rod
(includes illus. nos. 5, 6, and 8 through 10)
615300433/8” x 1” Flat Washer
78500661Tumbler Support ONLY
815202733/8-18 Hex Nut
915300533/8” Lock Washer
10 153004 3 3/8” Flat Washer
11 115999 1 Felt Collar ONLY
401010 1 #847 Adhesive for Felt Collar (5 oz. tube)
12 100173 1 12-Rib 95” (J) Poly Belt
(refer to 12-Rib 95” [J] Poly Belt Arrangement on page 34)
13 115992 1 Inner Ring Felt Collar ONLY
14 100812 1 1-3/8” Retaining Ring
*Felt collars are not included and must be ordered separately.
