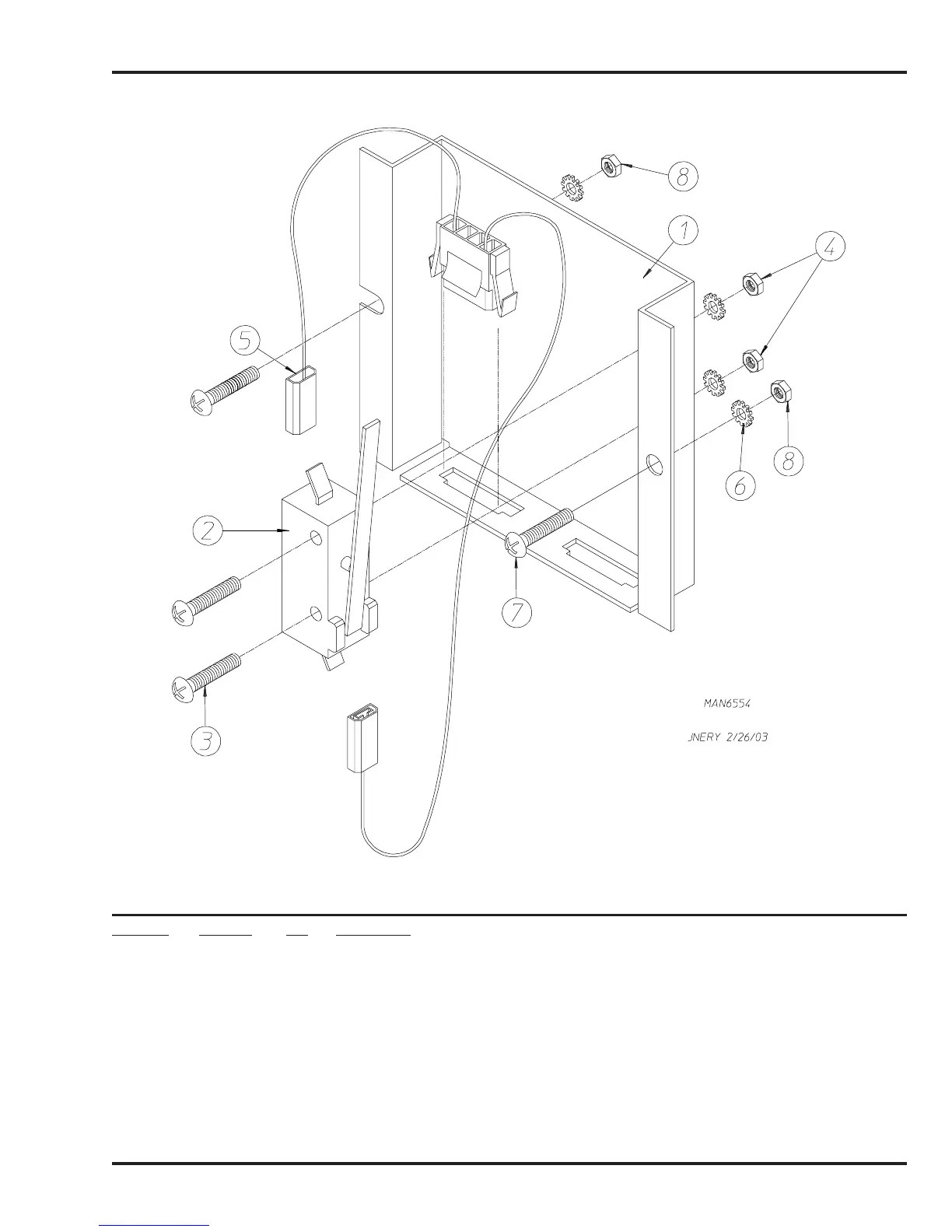

AD-330 / AD-320 Lint Drawer (Basket) Switch Assembly
Illus. No. Part No. Qty. Description
13040391AD-330 / AD-320 Lint Drawer Switch Bracket
21369921Lint Drawer Safety Switch
31500062#6-32 x 7/8” Round Head Machine Screw
41520132#6-32 Hex Nut
58523411AD-330 / AD-320 Phase 7 Lint Switch Harness Top and Bottom
61530104#6 Internal and External Star Washer
71500012#6-32 x 7/8” Phillips Round Head Machine Screw
81520002#6-32 Hex Nut
122801 1 Pin / Socket Extraction Tool … Not Illustrated
–8523401Lint Drawer Switch Assembly Complete
(includes illus. nos. 1 through 8)
