24 American Dryer Corporation 450239-4

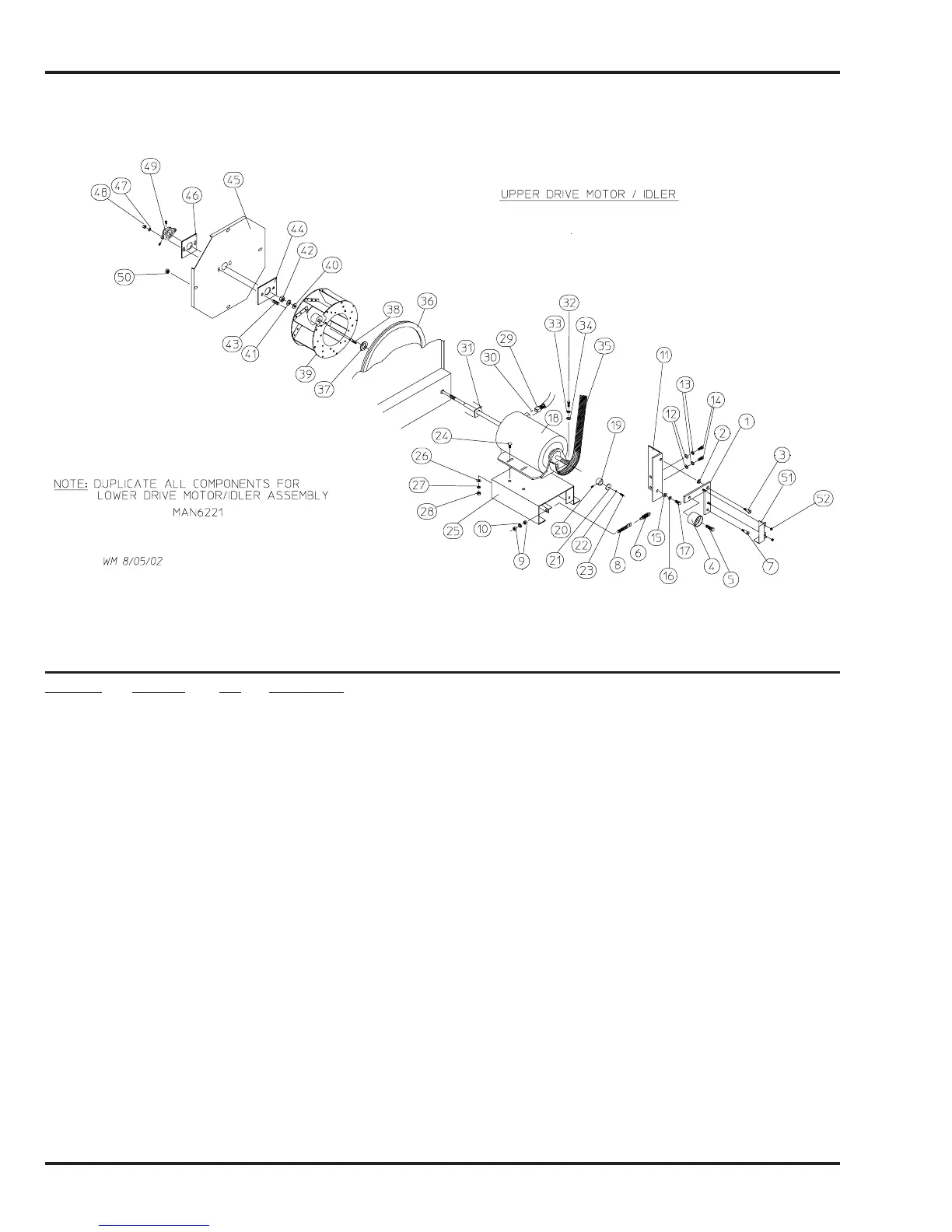

Totally Enclosed, Non-Vent Motor / Idler Assemblies
Illus. No. Part No. Qty. Description
18829101Idler Arm ONLY
801019 1 Idler Arm Assembly with Hardware
(includes illus. nos. 1 through 10)
2121350113/32” x 3/8” I.D. Bronze
315426613/8” x 3/8” Shoulder Screw
41002501Back Side Idler Assembly
515060013/8-16 x 1-1/2” Hex Head Machine Bolt
615701011-7/8” Extension Spring
715427611/4-20 x 5/8” Shoulder Bolt
815427513/8-16 x 3-3/8” Spade Bolt
915200523/8-16 Hex Nut
10 153005 1 3/8” Lock Washer
11 850135 1 Idler Angle
12 153001 2 5/16” Flat Washer
13 153002 2 5/16” Lock Washer
14 150501 2 5/16-18 x 3/4” Hex Head Machine Bolt
15 153001 2 5/16” Flat Washer
16 153002 2 5/16” Lock Washer
17 150501 2 5/16-18 x 3/4” Hex Head Machine Bolt
18 100064 1 1/3 hp 120/230v 1ø 60 Hz Totally Enclosed, Non-Vent Motor with Plug
100049 1 1/3 hp 100-230v 1ø 50 Hz Totally Enclosed, Non-Vent Motor with Plug
19 101097 1 Rear Motor Shaft Bushing (for 60 Hz models)
101099 1 Rear Motor Shaft Bushing (for 50 Hz models)
20 154327 1 1/4-20 x 3/8” Socket Setscrew
To Next Page
